Easy Operation Long Distance 30L Payload Configured with Centrifugal Nozzles for Remotely Operated Obstacle Avoidance Drone

Short Description:

After-sales Service: Online Service
Warranty: 1 Year. Core Components: 3 Months
Installation: Module
Liquid Contained: Medicine, Disinfector
Spraying Shape: Sector
Volume: 30L/45kg
Samples:
US$ 11470/Piece 1 Piece(Min.Order)

| Request Sample

Customization:


Product Detail

Product Tags

Basic Info.

Model NO.
HTU T30

Power Supply
Electric

Material
Aerospace Aluminum + Carbon Fiber

Type
Uav

Transport Package
Cardboard Box

Specification
2515mm*1650mm*788mm

Trademark
HongFei

Origin
China

Product Description

Product Description

Dimension 2515*1650*788mm (Unfoldable)
1040*1010*788mm (Foldable)
Effective spray (depending on the crop) 6~8m
Whole machine weight (including battery) 40.6kg
Maximum effective takeoff weight (near sea level) 77.8kg
Battery 30000mAh, 51.8V
Payload 30L/45KG
Hovering time >20min (No load)
>8min (Full load)
Maximum flight speed 8m/s(GPS mode)
Working height 1.5~3m
Positioning accuracy (good GNSS signal, RTK enabled) Horizontal ± 10cmVertical ± 10cm
Avoidance perception range 1~40m (Avoidance front and rear according to the flight direction)

HTUT30intelligent dronesupports 30L large medicine box and 45L sowing box, which is especially suitable for large plot operation and medium plot and spraying and sowing areas with demand. Customers can choose the most suitable configuration according to their actual needs, no matter they use it for themselves or undertake plant protection and flying defense business.Easy Operation Long Distance 30L Payload Configured with Centrifugal Nozzles for Remotely Operated Obstacle Avoidance DroneFeatures1. All-aviation aluminum main frame, light weight, high strength, impact resistance. 2. Module-level IP67 protection, no fear of water, dust. Corrosion resistance. 3. It can be applied to multi-scene crop drug spraying, sowing and spreading fertilizer. 4. Easy to fold, can be installed in common agricultural vehicles, easy to transfer. 5.Modular design, most parts can be replaced by themselves. Modular DesignEasy Operation Long Distance 30L Payload Configured with Centrifugal Nozzles for Remotely Operated Obstacle Avoidance Drone·Full aviation aluminum main frame, reduce weight while high strength, impact resistance.·Core components closed treatment, avoid dust entry, resistant to liquid fertilizer corrosion.Easy Operation Long Distance 30L Payload Configured with Centrifugal Nozzles for Remotely Operated Obstacle Avoidance Drone·High toughness, foldable, triple filter screenSpraying and Spreading SystemEasy Operation Long Distance 30L Payload Configured with Centrifugal Nozzles for Remotely Operated Obstacle Avoidance DroneEquipped with 30L oversized medicine box·The operating efficiency is increased to 15 hectares/hour.·Equipped with no manual pressure relief valve, automatic exhaust, equipped with pressure nozzle, liquid medicine does not drift, can support centrifugal nozzle, powder does not block.·The full-range continuous level gauge shows the true liquid level.

Medicine box capacity 30L
Nozzle type High pressure Fan nozzle Support switching centrifugal nozzle
Number of nozzles 12
Maximum flow rate 8.1L/min

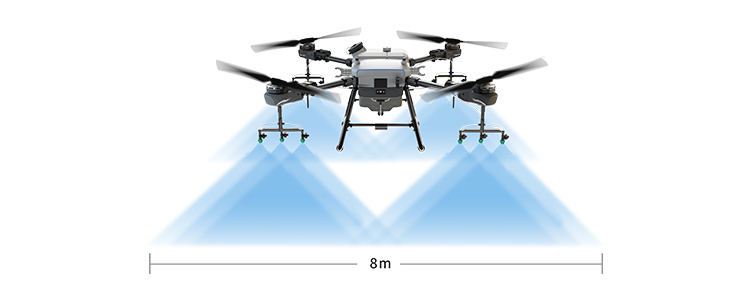

Spray width 6~8m

Easy Operation Long Distance 30L Payload Configured with Centrifugal Nozzles for Remotely Operated Obstacle Avoidance DroneEquipped with 45L bucket, large load· Up to 7m sowing width, the Air Spray is more uniform, does not hurt the seeds, does not hurt the machine.·Full anti-corrosion, washable, no blockage.·Measuring material weight, real time, anti-overweight.

Material box capacity 45L
Feeding method Roller quantification
Bulk material method High pressure air
Feeding speed 50L/min
Sowing width 5~7m

Multiple FunctionsEasy Operation Long Distance 30L Payload Configured with Centrifugal Nozzles for Remotely Operated Obstacle Avoidance Drone·Provides multiple modes of operation, including fully autonomous, AB points, and manual operations.·A variety of enclosure methods: RTK hand-held pointing, airplane dot, Map dot.·High-bright screen remote control, you can see clearly under the scorching sun, 6-8 hours long battery life.·Fully automatic generation of sweeping routes to prevent leakage.·Equipped with searchlights and help lights, it can also operate safely at night.Easy Operation Long Distance 30L Payload Configured with Centrifugal Nozzles for Remotely Operated Obstacle Avoidance Drone·Night navigation: Front and rear 720P HIGH definition FPV, rear FPV can be flipped down to view the ground.Intelligent auxiliary function

Easy Operation Long Distance 30L Payload Configured with Centrifugal Nozzles for Remotely Operated Obstacle Avoidance Drone
·Ultra-far 40m automatic identification of obstacles, autonomous obstacles.·Five-wave beams imitate the ground, accurately follow the terrain.·Front and rear 720P HD FPV, rear FPV can be turned down to observe the ground.

Intelligent Charging

Easy Operation Long Distance 30L Payload Configured with Centrifugal Nozzles for Remotely Operated Obstacle Avoidance Drone
·Can be 1000 cycles, the fastest 8 minutes full, 2 blocks can be looped.

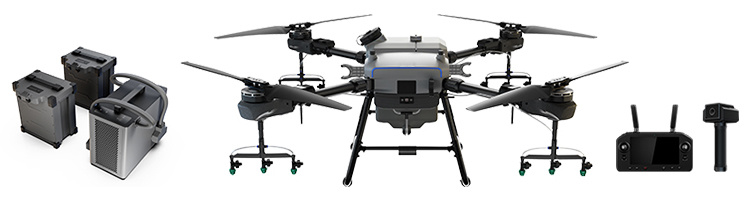

Standard configurationEasy Operation Long Distance 30L Payload Configured with Centrifugal Nozzles for Remotely Operated Obstacle Avoidance DroneDrone*1Remote control*1 Charger*1 Battery*2Dotter*1

Company Profile

Easy Operation Long Distance 30L Payload Configured with Centrifugal Nozzles for Remotely Operated Obstacle Avoidance Drone

FAQ

1.What is the best price for your product?We will quote based on the quantity of your order, the higher the quantity the higher the discount.2.What is the minimum order quantity?Our minimum order quantity is 1 unit, but of course there is no limit to the number of units we can purchase.3.How long is the delivery time of the products?According to the production order dispatch situation, generally 7-20 days.4.What is your payment method?Wire transfer, 50% deposit before production, 50% balance before delivery.5.What is your warranty time? What is the warranty?General UAV frame and software warranty of 1 year, the warranty of wearing parts for 3 months.
