Cheap price Agricultural Drone Manufacturers - China Supplier 30L Large Capacity Agriculture Spray Drone with 8m Spray Width 7m Spread Width – Hongfei Detail:

Basic Info.

Model NO.

HTU T30

Power Supply

Electric

Material

Frame: Aviation Aluminum

Transport Package

1100mm*1100mm*930mm

Specification

2515*1650*788mm(Unfoldable)

Trademark

Haoyi

Origin

Shanghai

Product Description

Product Parameters

HIGH COST PERFORMANCE – PLANT PROTECTIONSOLUTION

·High Efficiency ·Easy to operate ·High Quality ·Stable

·All-aviation aluminum main frame, light weight, high strength, impact resistance.

·Module-level IP67 protection, no fear of water, dust. Corrosion resistance.

·It can be applied to multi-scene crop drug spraying, sowing and spreading fertilizer.

·Easy to fold, can be installed in common agricultural vehicles, easy to transfer.

·Modular design, most parts can be replaced by themselves. China Supplier 30L Large Capacity Agriculture Spray Drone with 8m Spray Width 7m Spread Width

China Supplier 30L Large Capacity Agriculture Spray Drone with 8m Spray Width 7m Spread Width

HTU T30Product Parameters

Basic Parameters		Flight Parameters
Outline dimension	25151650788mm(Unfoldable)	Hovering time	>20min(No load)
	10401010788mm(Foldable)		>8min(Full load)
Effective spray (depending on the crop)	6~8m	Maximum flight speed	8m/s(GPS mode)
Whole machine weight (including battery)	40.6kg	Job height	1.5~3m
Maximum effective takeoff weight (near sea level)	77.8kg	Positioning accuracy (good GNSS signal, RTK enabled)	Horizontal ± 10cm Vertical ± 10cm
Battery	30000mAh, 51.8V	Avoidance perception range	1~40m Avoidance front and rear according to the flight direction
Spraying Parameters		Sowing Parameters
Medicine box capacity	30L	Material box capacity	45L
Nozzle type	High pressure Fan nozzle Support switching centrifugal nozzle	Feeding method	Roller quantification
Nozzle model	11015VS	Bulk material method	High pressure air
Number of nozzles	12	Feeding speed	50L/min
Maximum flow rate	8.1L/min	Broadcasting	5~7m
Spray	6~8m

Product Description

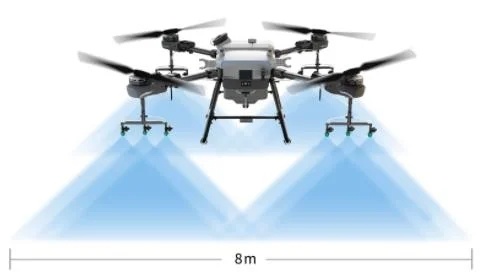

Spraying

Equipped with 30L oversized medicine box

·The operating efficiency is increased to 15 hectares/hour.

·Equipped with no manual pressure relief valve, automatic exhaust, equipped with pressure nozzle, liquid medicine does not drift, can support centrifugal nozzle, powder does not block.

·The full-range continuous level gauge shows the true liquid level.

·120ha/day, 170 times more artificial·Safer without contact·Uniform spraying,Provincial medicine·Disinfection in isolation area

·0.7ha/day ·Pesticide injury·Re-spray, spray leakage·Manual operation in isolation area is easy to be infected

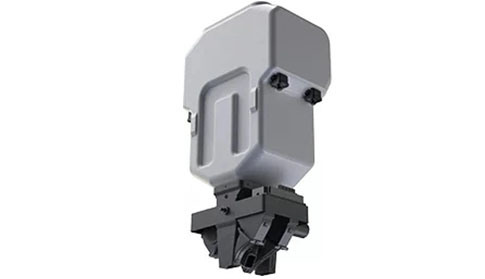

Spreading

Equipped with 45L bucket, large load

·8m sowing width, the Air Spray is more uniform, does not hurt the seeds, does not hurt the machine.

·Full anti-corrosion, washable, no blockage.

·Measuring material weight, real time, anti-overweight.

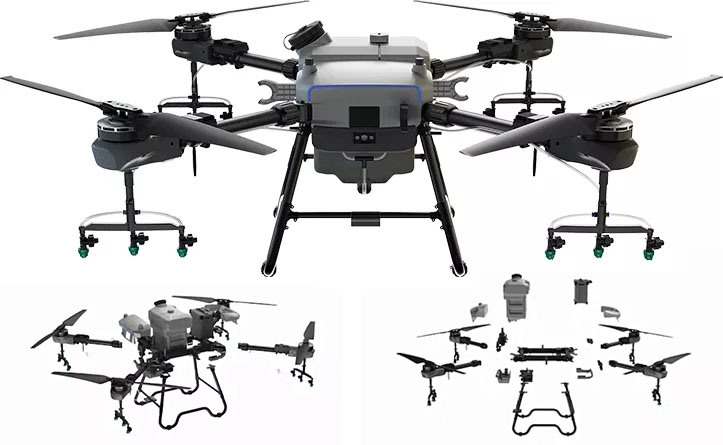

Modular Design

China Supplier 30L Large Capacity Agriculture Spray Drone with 8m Spray Width 7m Spread Width ·Full aviation aluminum main frame, reduce weight while high strength, impact resistance.

·Core components closed treatment, avoid dust entry, resistant to liquid fertilizer corrosion. China Supplier 30L Large Capacity Agriculture Spray Drone with 8m Spray Width 7m Spread Width

·High toughness, foldable, three-layer filter

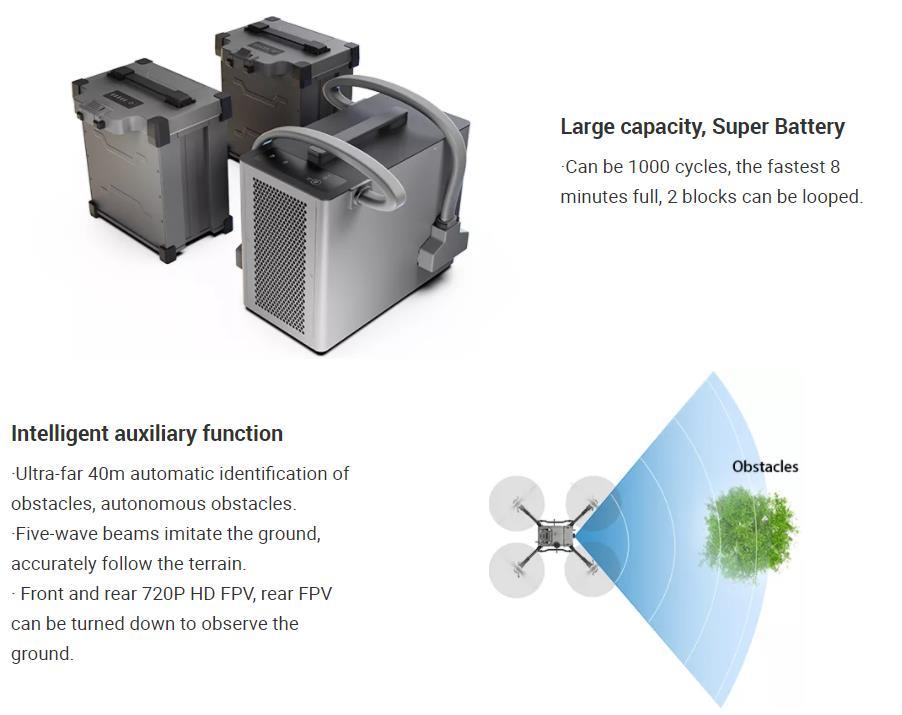

·Provides multiple modes of operation, including fully autonomous, AB points, and manual operations.·A variety of enclosure methods: Handheldmappingdevice, airplane dot, Map dot.·High-bright screen remote control, you can see clearly under the scorching sun, 6-8 hours long battery life.·Fully automatic generation of sweeping routes to prevent leakage.·Equipped with searchlights and help lights, it can also operate safely at night. China Supplier 30L Large Capacity Agriculture Spray Drone with 8m Spray Width 7m Spread Width

·Night navigation: Front and rear 720P HIGH definition FPV, rear FPV can be flipped down to view the ground.
