GS-260X Integrated All in One Mobile Laser Scanning System Three Echo Supported High Precision Easy to Operate Wide Scanning Range

Short Description:

Product Name: GS-260X

Type: Mobile Laser Scanning System

Send email to us

Product Detail

Product Tags

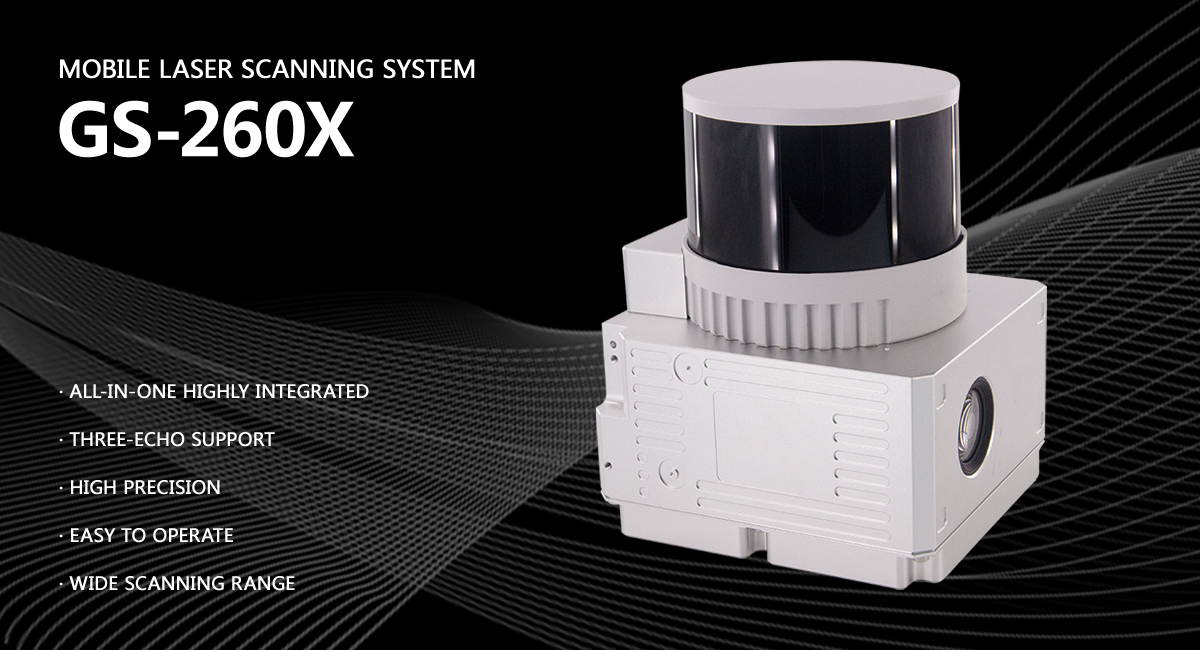

GS-260X Mobile Laser Scanning System

The GS-260X boasts a maximum range of 300m and a lightweight design of only 1.1kg maximizing operating time with a top laser point rate of 1,920,000 pts/s three echoes strong penetration and a deeply integrated camera enabling simultaneous acquisition of point clouds and images Widely used in industries such as terrain mapping power corridor inspection forestry survey and digital city the GS-260X makes large-scale data collection effortless.

Product Parameters

System Specifications
Point Cloud Accuracy	10cm@150m	Power Supply Range	12-24V
Overall Dimensions	14.410.912cm	System Power Consumption	20W
Operating Temperature	-20ºC-55ºC	Mounting Platforms	Airborne / Vehicle-mounted
Storage Capacity	Built-in Flash 64GB + 128GB SD Card	Device Weight	1.1kg
POS Performance Specifications
Model	gSpin 310	Heading Accuracy	0.017°
Data Update Rate	200Hz	Roll Accuracy	0.005°
Positioning Accuracy	Horizontal 0.02m, Vertical 0.03m	Pitch Accuracy	0.005°
GNSS Signal Types	GPS L1/L2/L5; GLONASS L1/L2; BDS B1c/B1/B2/B2a/B2b/B3; GALILEO E1/E5b/E5a
Laser Performance Specifications
Range	300m	Ranging Accuracy	±2cm
Number of Channels	32	Horizontal Field of View (FOV)	360°
Vertical Field of View (FOV)	40.3°	Point Rate	1,920,000 pts/s (Three Echoes)
Camera Specifications
Resolution	26MP	Field of View (FOV)	83°

Applicable Scenarios

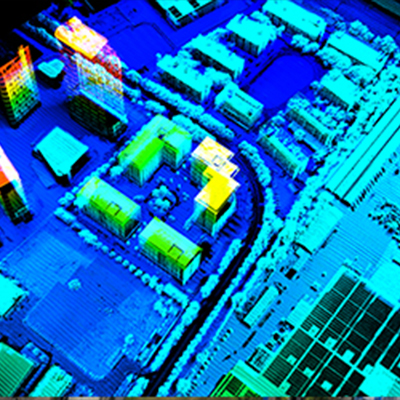

Smart Cities

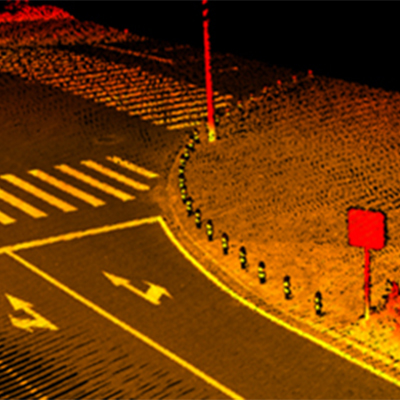

Road Traffic

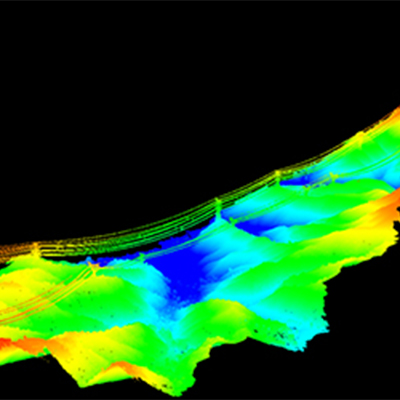

Power Inspection

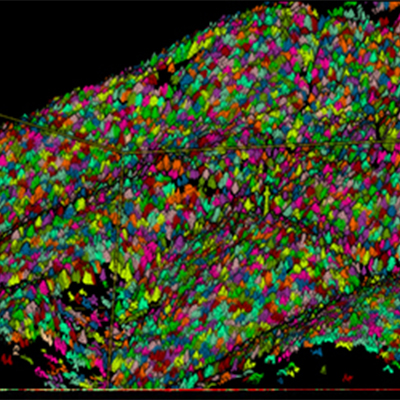

Forestry Survey
