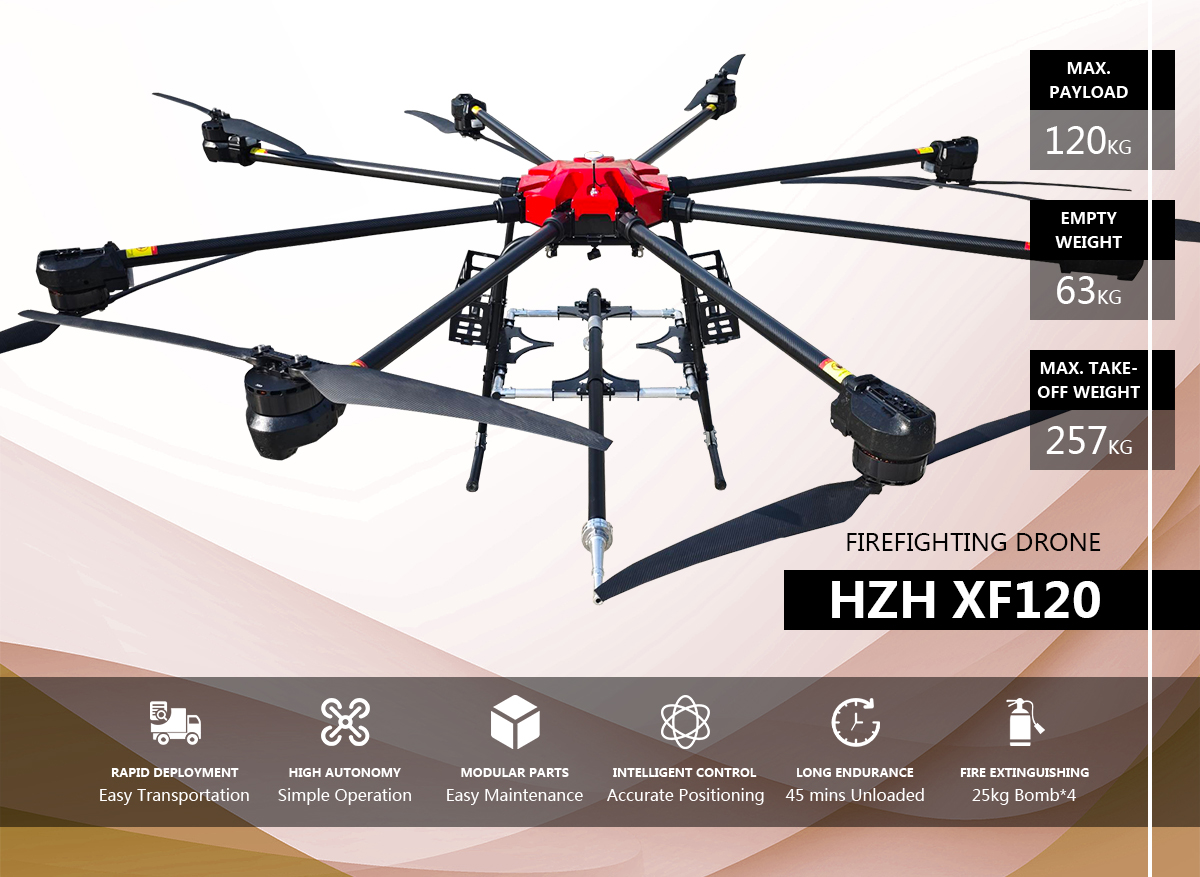

HZH XF120 Firefighting Drone
The HZH XF120 Firefighting Drone is designed for rapid and efficient fire suppression in mountainous areas, grasslands, forests, and other challenging terrains. Equipped with a release mechanism, targeting distributor, laser rangefinder, and four 25kg fire-extinguishing bombs, this drone delivers precise and effective fire control from the air.
With its high payload capacity and advanced targeting system, the HZH XF120 ensures accurate deployment of fire suppression agents, making it an essential tool for wildfire prevention and emergency response. Engineered for high efficiency, stability, and adaptability, it is a game-changer in aerial firefighting operations.
· Convenient Transport & Rapid Deployment:
The drone is easily transportable by various vehicles and is ideal for rugged terrain and slopes. It can be fully deployed within 5 minutes and flexibly adjusts flight paths mid-air.
· Autonomous Operation:
Featuring a user-friendly design, the drone is simple to operate and requires minimal training. It performs missions with little human intervention during flight.
· Easy Maintenance & Cost Effective:
Constructed with standardized, modular components, maintenance is straightforward. Regular part replacements ensure safe and reliable operation.
· Intelligent Control System:
Equipped with an advanced control system, it enables precise timed/altitude-specific detonation of fire extinguishing bombs. The system utilizes LiDAR to accurately pinpoint fire sources, enhancing suppression efficiency and accuracy.
· High Payload & Extended Flight Time:
With a maximum takeoff weight of 257.8kg, the HZH XF120 carries diverse firefighting and rescue payloads. Post-mission, it continues monitoring and transmits real-time imagery to command centers.
· High-Efficiency Fire Extinguishing Bombs:
Capable of carrying four 25 kg bombs per mission, it covers approximately 200-300 m² per deployment. The bombs effectively suppress smoke, reduce temperatures, and absorb hazardous particulates. The eco-friendly fire retardant also replenishes moisture and nutrients for vegetation recovery.
HZH XF120 Flight Platform
| Dimensions (Unfolded) | 4605*4605*990mm |
| Weight |
63kg
|
| Max. Altitude Limit |
4500m
|
| Operating Altitude | ≤1000m |
| Max. Payload |
120kg
|
| Max. Takeoff Weight |
257.8kg
|
Compatible Fire Extinguishing Bombs
The HZH XF120 Firefighting UAV features an intelligent control system for precise extinguishing, carrying four 25KG water-based bombs to efficiently cover 200-300m² per mission.

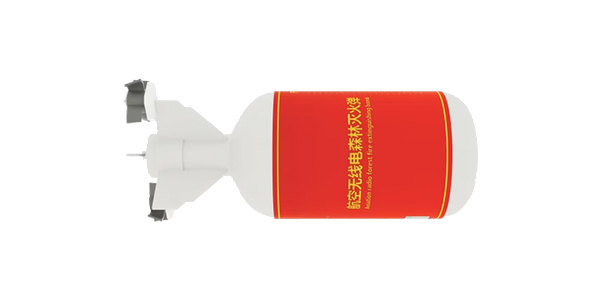

| Water-Based Fire Extinguishing Bomb | |
| The water-based fire extinguishing bomb is specially designed and developed for aerial firefighting operations, achieving the requirements of firefighting tasks in various terrains, large areas, and wide ranges through aerial explosion and spraying. | |
| Basic Parameters | |
| Filling Volume of Extinguishing Agent | 25L |
| Delivery Type | Vertical Precision Drop |
| Delivery Accuracy | 2m*2m |
| Operation Mode | Aerial Burst Spraying |
| Burst Control Mode | Timing and Altitude can be set independently |
| Spray Radius of Extinguishing Agent | ≥15m |
| Fire Extinguishing Area | 200-300m² |
| Operating Temperature | -20ºC-55ºC |
| Fire Extinguishing Level | 4A / 24B |
| Response Time | ≤5 minutes |
| Validity Period | 2 years |
| Length of Bomb | 600mm |
| Diameter of Bomb | 265mm |
| Packaging Size | 280mm*280mm*660mm |

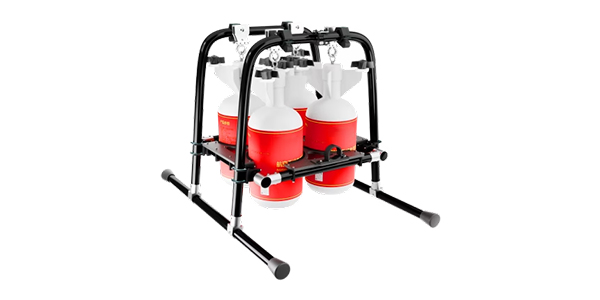

| Fire Extinguishing Bomb Deployment Device | |
| Made of 7075 aviation aluminum and carbon fiber material, making it sturdy, durable, and lightweight. Unique quick-release design allows for installation and removal in one minute. High-quality dual servo control enables single or dual mode release. | |
| Fire Extinguishing Bomb Dispenser Basic Parameters | |
| Product Weight | 1.70kg net weight (excluding fire extinguishing bombs) |
| Product Dimensions | 470mm*317mm*291mm |
| Material | 7075 aviation aluminum, carbon fiber |
| Supply Voltage | 24V |
| Launch Mode | Single shot, double shot |
| Recommended Launch Height | 5-50m |
| Number of Bombs Loaded | 6 pieces (150mm fire extinguishing bombs) |
| Communication Interface | PWM pulse width signal |
| Fire Extinguishing Bomb Basic Parameters | |
| Sphere Diameter | 150mm |
| Sphere Weight | 1150±150g |
| Dry Powder Weight | 1100±150g |
| Alarm Loudness | 115dB |
| Effective Fire Extinguishing Range | 3m³ |
| Automatic Fire Extinguishing Time | ≤3s |
| Environmental Temperature | -10ºC-+70ºC |
| Fire Extinguishing Level | Classes A / B / C / E / F |
| Usage | Drop-in / point-fixed automatic sensing |
| Shelf Life | The same as the usage |

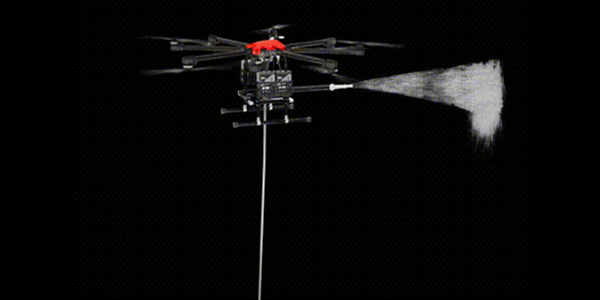

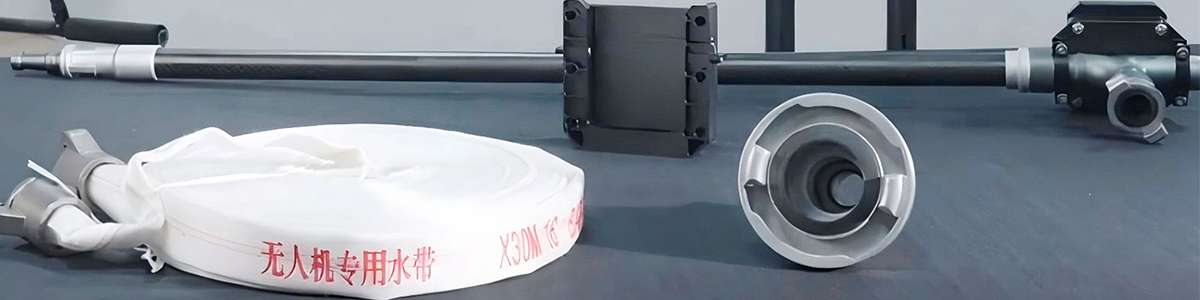

Fire Hose Mounting
Equipped with a new hose mounting function, the UAV can quickly arrive at the scene of the fire by taking advantage of the flexible maneuverability, and quickly suppress and extinguish the fire in areas that cannot be reached by personnel.
| Basic Parameters | |
| Hose Diameter | 50mm |
| Nozzle Length | 3m |
| Nozzle Range | 20m |
| Nozzle Flow Rate | ≥1900L/min |
| Towing Height | 150m |
HZH XF120 High-Altitude Operation Performance

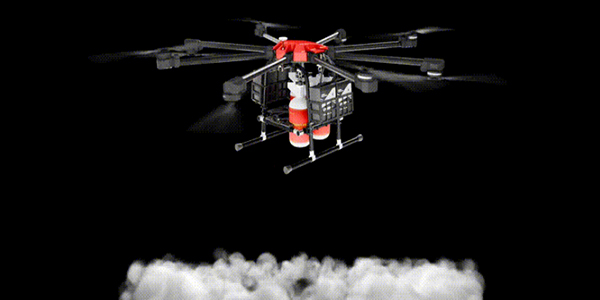

Fire Extinguishing Bomb
Fire Hose

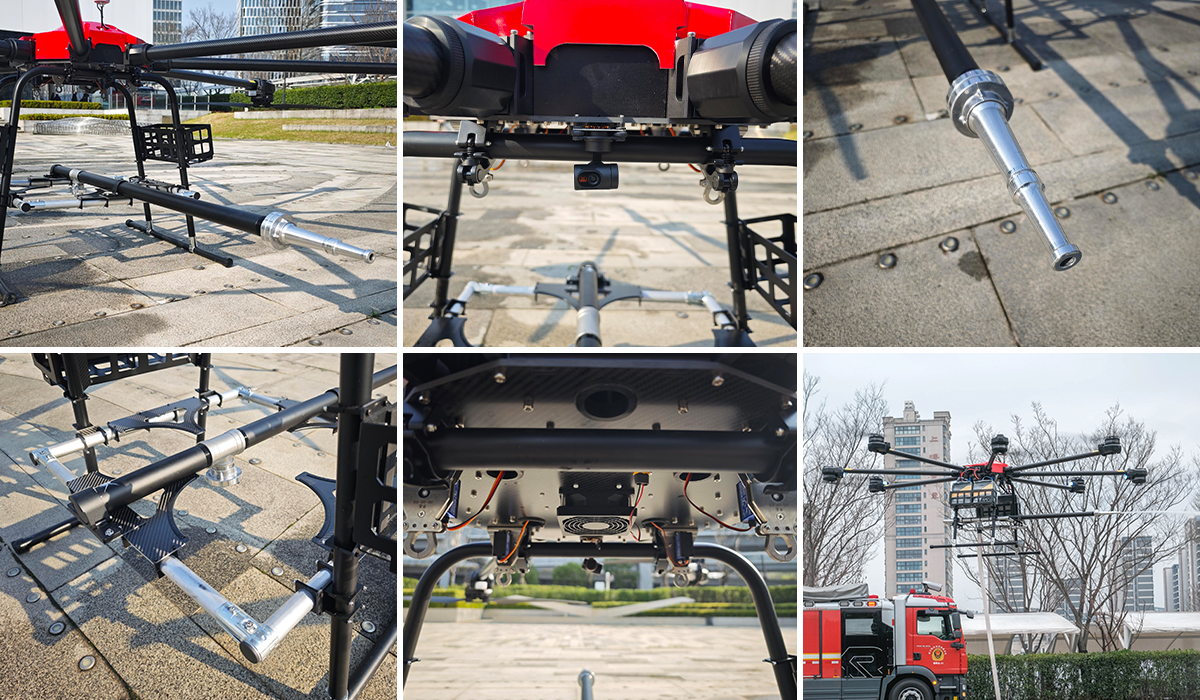

Product Photos
