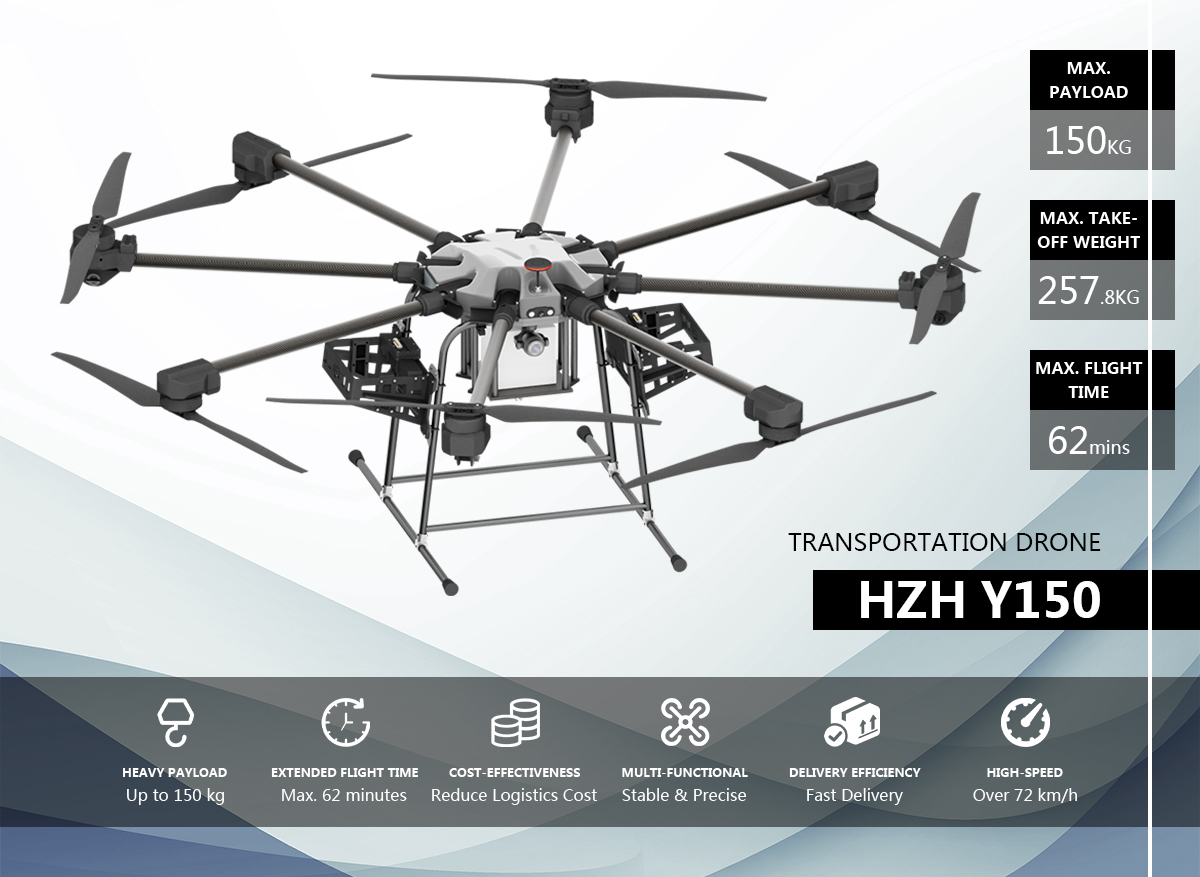

HZH Y150 Transportation Drone
The HZH Y150 Transport Drone is specifically engineered for heavy-duty aerial transportation. With an impressive payload capacity of up to 150 kg and an extended flight time of 62 minutes, it stands out in the world of cargo delivery drones. Designed to handle a wide range of logistics and transport missions, the HZH Y150 is ideal for mountain cargo delivery, urban logistics, and long-distance drone transport in challenging environments.
Product Parameters & Features
| Aerial Platform | Remote Control | ||
| Dimensions (folded) | 1010*870*2320mm | Remote Controller |
H12 Pro, 5.5-inch Remote Controller with Screen |
| Dimensions (unfolded) | 4605*4605*990mm | Max. Signal Range |
10km |
| Weight (excluding battery) | 63kg | Operating Frequency |
2,400-2,483Ghz |
| Weight (including battery) | 107.8kg | Dimensions |
190*152*94mm |
| Waterproof Grade | IP67 | Charging Port |
TYPE-C |
| Flight Parameters | Duration |
6-20 hour |
|
| Max. Take-off Weight | 257.8kg | Compatible Device |
HF T52, HF T65, HF T72 |
| Max. Load Weight |
150kg | Intelligent Battery | |
| Max. Flight Speed |
20m/s |
Model | 18S 40000mAh*4 |
| Camera | Weight | 11.2 kg | |
| Camera Type | 14x Single-light Pod | Smart Charger | |
| Effective Pixels | 12 Million | Charging Input | 110V-240V |
| Lens Focal Length | 14x Zoom | Charging Output | 60A (single-channel charging) |
| Min. Focus Distance | 10mm | Rated Power | 3000W |

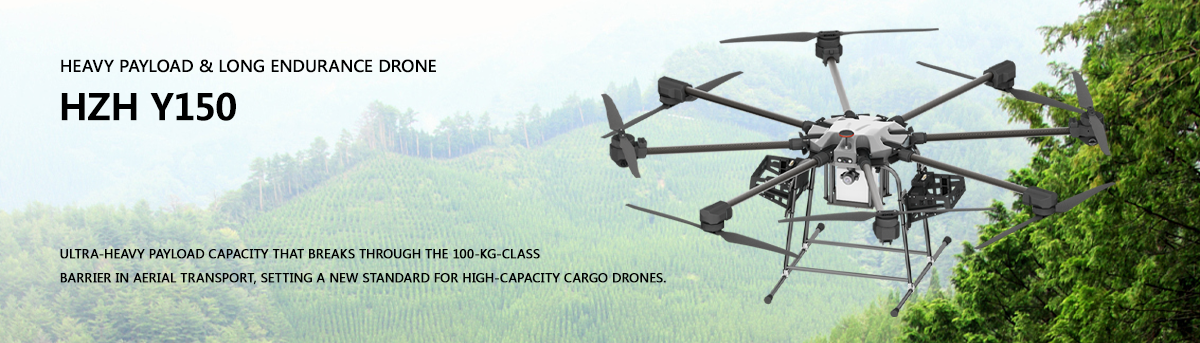

The HZH Y150 Heavy-Lift Transport Drone is a large-capacity aerial delivery solution, featuring a 150 kg payload capacity and up to 62 minutes of flight time. With exceptional stability, speed, and efficiency, it pushes the limits of heavy cargo drone transport. Engineered for challenging terrains and oversized payloads, the HZH Y150 offers a cost-effective drone delivery solution for high-demand logistics.
Heavy Payload Capacity
Capable of carrying up to 150kg, ideal for significant transport tasks.
Extended Flight Time
62-minute flight duration ensures the ability to cover long distances.
Cost-Effectiveness
Reduces the need for traditional ground transportation, leading to decreased logistics costs and time savings.
Versatile Operational Capability
Its octocopter design and advanced navigation systems allow for stable and precise operations in diverse environments.
Enhanced Delivery Efficiency
Revolutionizes aerial logistics by enabling quick and reliable delivery of goods to remote or challenging locations.
High-Speed Performance
Achieves cruise speeds over 72km/h, enabling efficient transit.

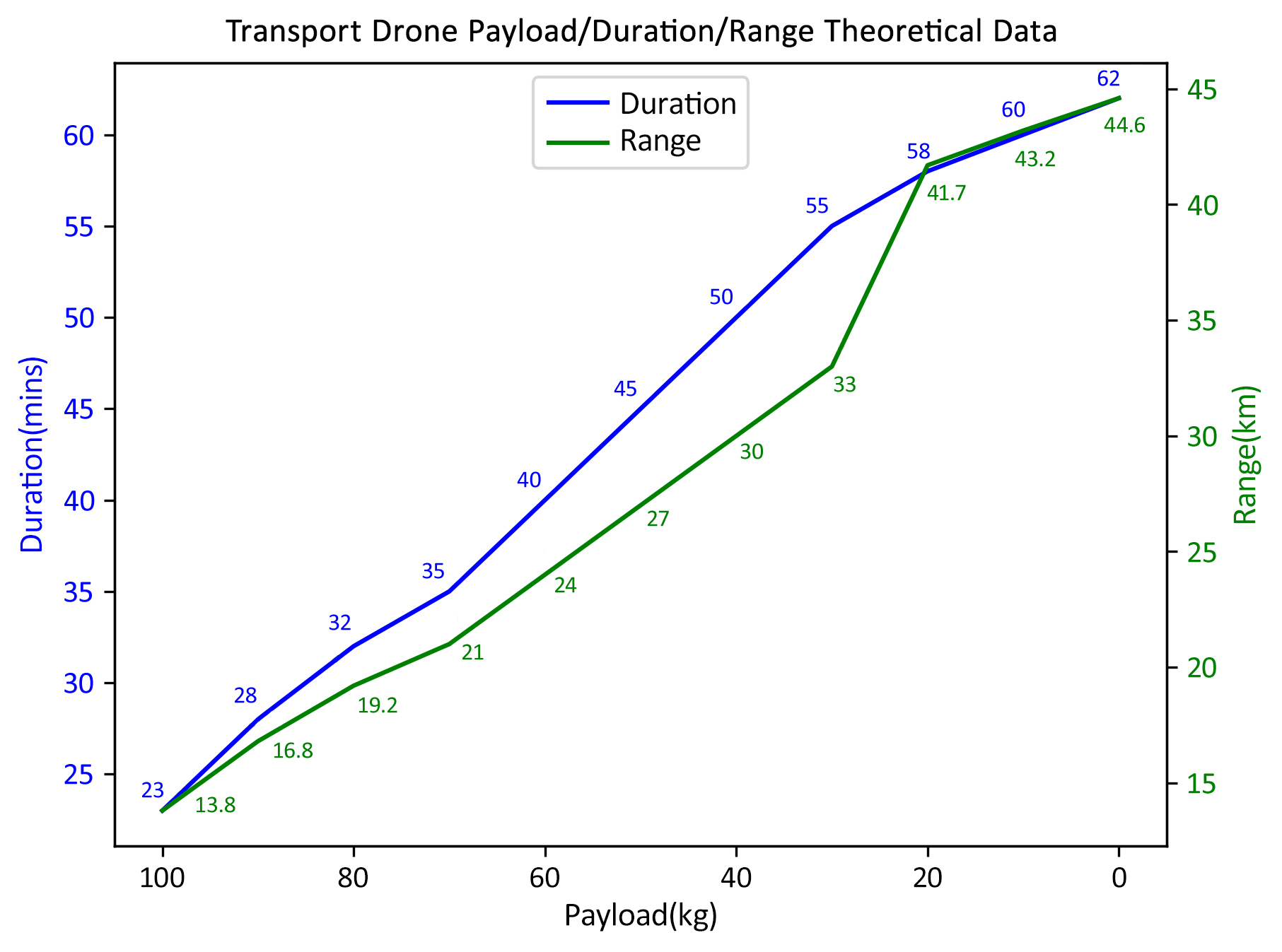

Operational Efficiency
Theoretical flight duration, range and payload data for the HZH Y150 transportation Drone.
Multiple Configurations
Different accessories for different tasks - Throwing and transportation can be accomplished by installing different accessories.

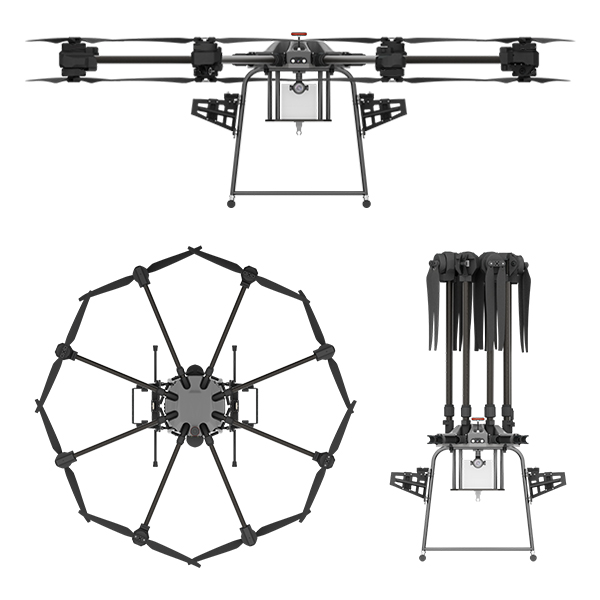

Throwing Version

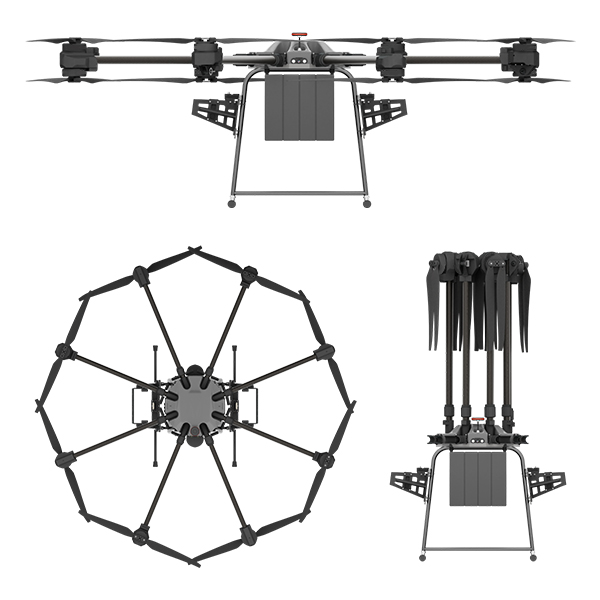

Transportation Version
Optional Configuration

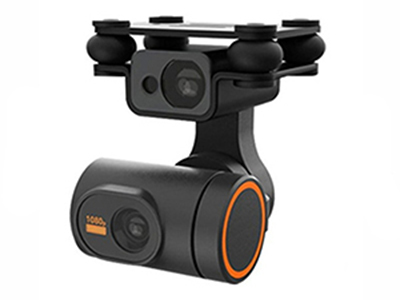

Dual-axis Gimbal Pod
· High-definition Camera: 1080P
· Dual-axis Stabilization
· Multi-angle True Field of View

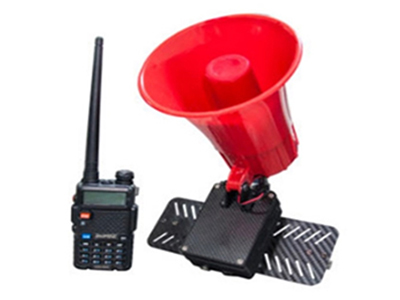

Drone-mounted Megaphone
· Transmission Range of 3-5km
· Small and Lightweight Speaker
· Clear Sound Quality

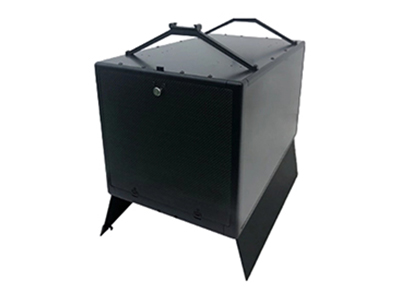

Deployment Box (60*60*60cm)
· Max. Payload of 30kg
· High-strength Structure
· Suitable for Delivering Materials

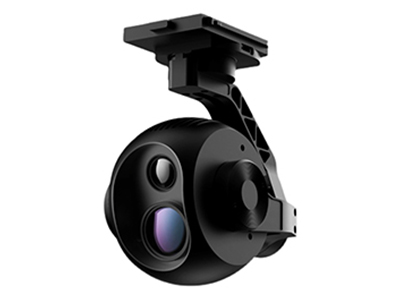

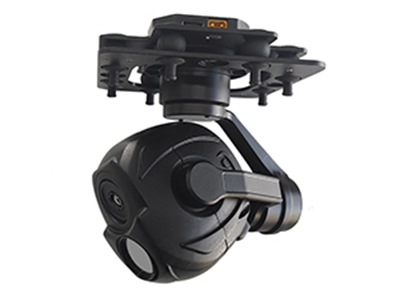

10x Dual-light Pod
· CMOS Size 1/3 Inch, 4 Million Pixels
· Thermal Imaging: 256*192 Pixels
· Wave: 8-14µm, Sensitivity: ≤65mk

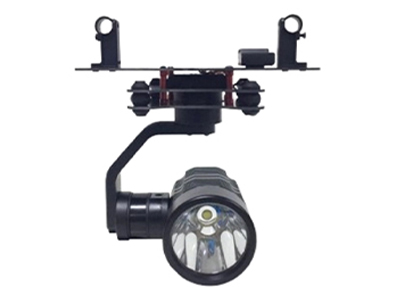

Illumination Device
· Rated Brightness: 4000 Lumens
· Beam Diameter: 3m
· Effective Lighting Distance: 300m
Drop Rope
· High-strength, Lightweight: 1.1kg
· Quick-release, Heat-resistant
· Emergency Rescue Aerial Delivery
30x Dual-light Pod
· 30x 2-megapixel Optical Zoom Core
· 640*480 Pixel Infrared Camera
· Modular Design, Strong Extensibility

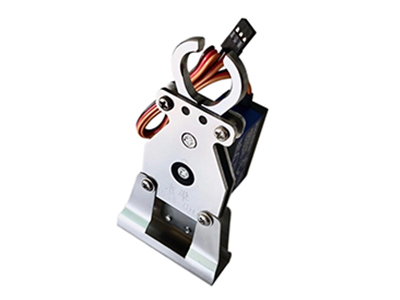

Remote Deployer
· One-button Control
· Easy Operation
· Remote Control Pre-Set with Data

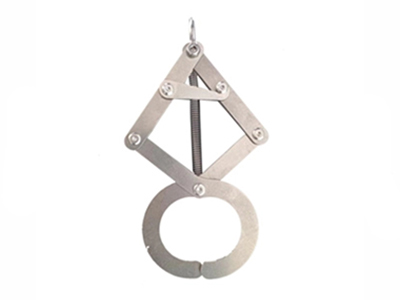

Automatic Release Hook
· Lifting Weight: ≤150kg
· Automatic Opening of Hook upon Cargo Landing

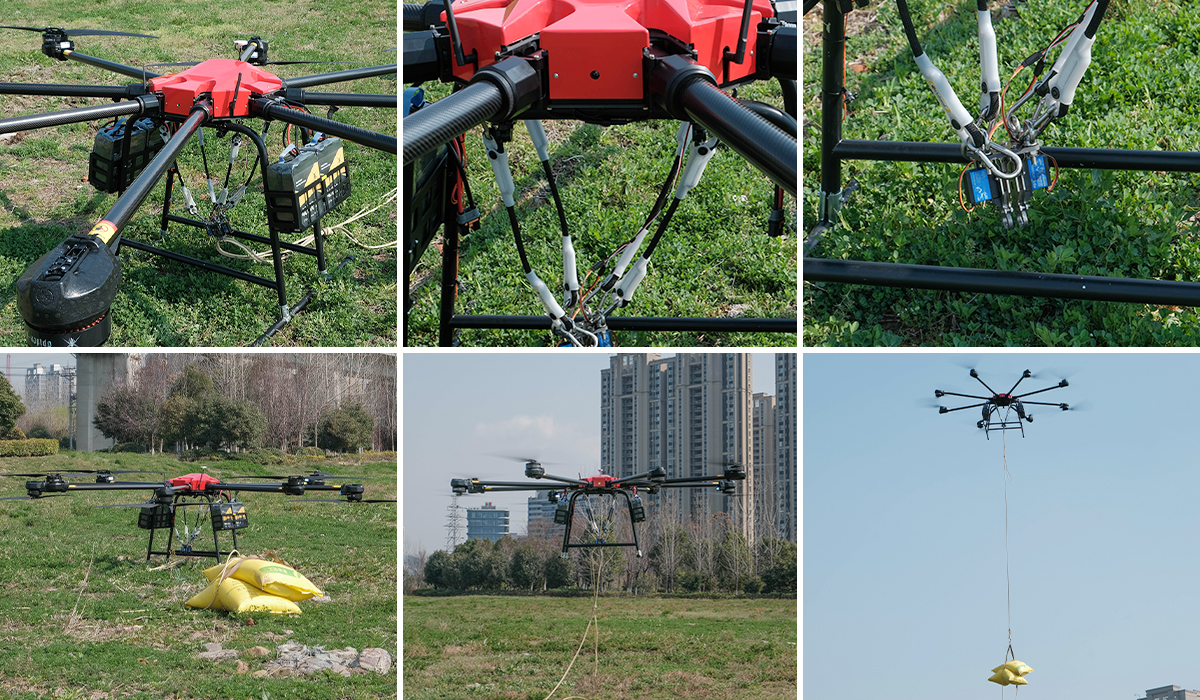

Product Photos
FAQ
1. Who are we?
We are an integrated factory and trading company, with our own factory production and 65 CNC machining centers. Our customers are all over the world, and we have expanded many categories according to their needs.
2. How can we guarantee quality?
We have a special quality inspection department before we leave the factory, and of course it is very important that we will strictly control the quality of each production process throughout the whole production process, so our products can reach a 99.5% pass rate.
3. What can you buy from us?
Professional drones, unmanned vehicles and other devices with high quality.
4. Why should you buy from us not from other suppliers?
We have 19 years of production, R&D and sales experience, and we have a professional after sales team to support you.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, FCA, DDP;
Accepted Payment Currency: USD, EUR, CNY.
