One of Hottest for Pesticide Drone Sprayer Price - New Design 25L Multi-Rotor Agricultural Drone Equipped with Professional Flight Control – Hongfei

The HBR T25 is a versatile agricultural drone that can perform liquid medicine spraying and solid fertilizer spreading operations.It can spray 10-12 hectares of fields per hour, uses smart batteries and recharges quickly. It is very suitable for large areas of farmland or fruit forests.The machine is packed in an airline box, which can ensure that the machine will not be damaged during the transportation.Features

A new generation of fly-defense experts:

1. From top to bottom, 360 degrees without dead angle.

2. Adopt high-quality flight control, intelligent battery, the highest grade 7075 aviation aluminum structure, to ensure stable flight and safe operation.

3. GPS positioning function, autonomous flight function, terrain following function.

4. Exported to many countries and regions, high stability and durability can bring you more revenue.

StructuralDesign

Small and compact body. Excellent structural design. Create more possibilities for agricultural spraying. The latest quick-plugging bucket design reduces the time required for refilling by 50% and greatly improves the operational efficiency. The landing gear of the drone is made of aluminum alloy to ensure structural strength and enhance anti-vibration performance. The drone body part is made of carbon fiber material. It increases the strength and reduces the weight of the airframe to facilitate the transportation.

Intelligent spreading system

Adapted to two sets of T16/T25 agricultural drone platforms. The spreading system supports different diameter particles from 0.5 to 5 mm for operation. It supports solid particles such as seeds, fertilizers and fish fry. The maximum spraying width is 15 meters and the spreading efficiency can reach 50kg per minute to help increase agricultural production. The rotating speed of dumping disc is 800~1500RPM, 360°all-round spreading, uniform and no omission, ensuring the efficiency and effect of operation. Modular design, quick installation and disassembly. Support IP67 waterproof and dustproof.

Radar System

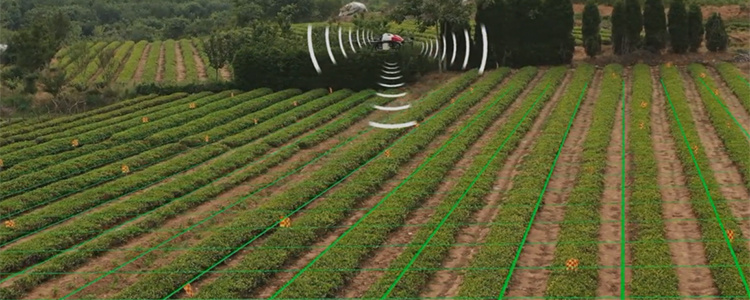

Terrain follow radar:

This radar launch high precision centimeter level wave and early precept the terrain topography. Users can adjust the following sensitivity according to different crops and terrain topography to satisfy the demand of terrain following flight, ensure flight safety and well-distribution spraying.

Front and rear obstacle avoidance radar:

High precision digital radar wave detect the surroundings and circumvent obstacles automatically when flying. Operation safety is highly guaranteed. Because of resistance to dust and water, the radar can be adapted to most environment.

Intelligent Flight Control System

The system integrates high-precision inertial and satellite navigation sensors, the sensor data is preprocessed, drift compensation and data fusion in the full temperature range,obtain real-time flight attitude, position coordinates, working status and other parameters to complete the high-precision attitude and route control of the multi-rotor UAS platform.

Route Planning

Drone route planning is divided into three modes.Plot mode, Edge-sweeping modeand Fruittreemode.

·Plot mode is a commonly used planning mode. 128 waypoints can be added.Freely set the altitude, speed, obstacle avoidance mode, and flight path.Automatically upload to the cloud, Convenient for the next spray planning.

·Edge-sweeping mode, the drone sprays the boundary of the planned area.Arbitrarily adjust the number of laps for sweeping flight operations.

·Fruittreemode.Developed for spraying fruit trees.The drone can hover, spin and hover at a certain point. Freely choose waypoint/route mode for operation. Set fixed points or slopes to effectively prevent accidents.

Plot Area Sharing

Users can share plots.The plant protection team downloads the plots from the cloud,edits and delete plots. Share the planned plots through your account. You can check the planned plots uploaded to the cloud by customers within five kilometers. Provide plot search function, enter keywords in the search box, you can search and locate plots that meet the search criteria and display pictures.

Intelligent Power System

Wonderful combination of 14S 42000mAh Lithium-polymer battery and the four channel high voltage smart charger ensures the stability and safety of charging.High charging effiency,rapidly charge four smart battery concurrently.

1.What is the best price for your product?

We will quote based on the quantity of your order, the higher the quantity the higher the discount.

2.What is the minimum order quantity?

Our minimum order quantity is 1 unit, but of course there is no limit to the number of units we can purchase.

3.How long is the delivery time of the products?

According to the production order dispatch situation, generally 7-20 days.

4.What is your payment method?

Wire transfer, 50% deposit before production, 50% balance before delivery.

5.What is your warranty time? What is the warranty?

General UAV frame and software warranty of 1 year, the warranty of wearing parts for 3 months.
