China Best Durable Carbon Fiber Modularity Agriculture Drone Rack Folding Multipurpose Drone Frame with Modular Body

Short Description:

  • FOB Price: US $980-1290 / Piece
  • Size: 2153mm*1753mm*800mm
  • Weight: 26.5KG
  • Tank volume: 30L/40L
  • Propulsion system: X9 Plus and X9 Max
  • Product Detail

    Product Tags

    Products Introduction

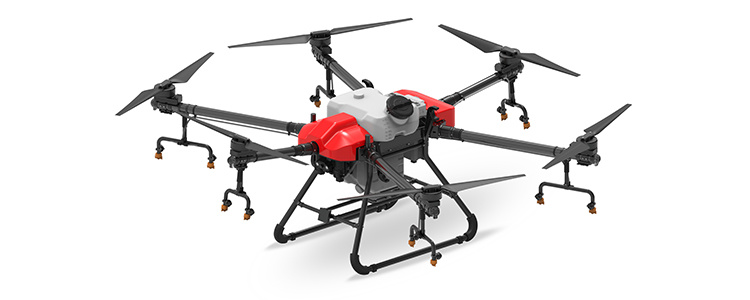

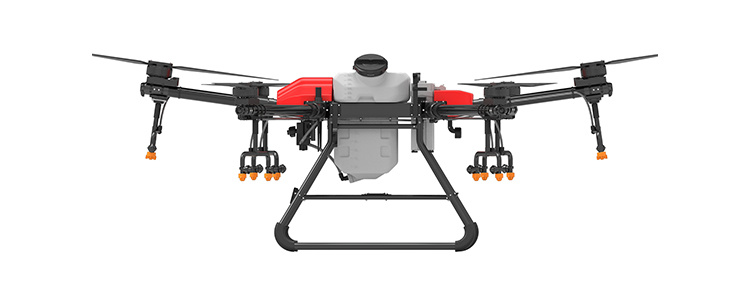

    The HF F30 spray drone has the ability to cover a variety of uneven terrain, making it the perfect precision spraying tool. Crop drones significantly reduce the time and cost of hiring manual spraying and crop dusters.

    The use of drone technology in agricultural production can effectively reduce farmers' production costs compared to manual spraying operations. Farmers using traditional backpacks typically apply 160 liters of pesticides per hectare, tests have shown that using drones they will utilize only 16 liters of pesticides. Precision agriculture is based on the use of historical data and other valuable metrics to make farmers' crop management efficient and optimized. This type of agriculture is being promoted as a means of adapting to the adverse effects of climate change.


    Arm and propellers unfolded 2153mm*1753mm*800mm

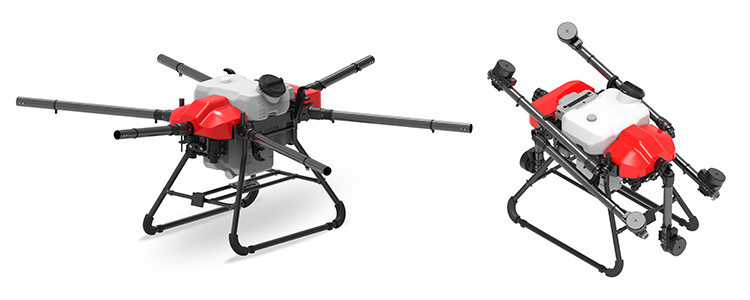

    Arm and propellers folded 1145mm*900mm*688mm
    Max diagonal wheelbase 2153mm
    Spray tank volume 30L
    Spreader tank volume 40L
    Flight parameters
    Suggested configuration Flight controller (Optional)
    Propulsion system: X9 Plus and X9 Max
    Battery: 14S 28000mAh
    Total weight 26.5 kg (Excluding battery)
    Max takeoff weight Spraying: 67kg (at sea level)
    Spreading: 79kg (at sea level)
    Hovering time 22min (28000mAh & takeoff weight of 37 kg)
    8min (28000mAh & takeoff weight of 67 kg)
    Max spray width 4-9m (12 nozzles,at a height of 1.5-3m above crops)

    Product Details

    Product Details 1

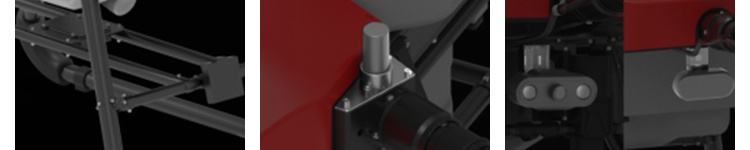

    Omnidirectional Radar Installation

    Product Details 5

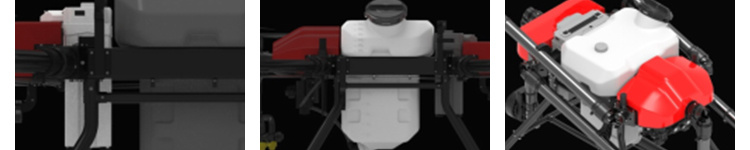

    Plug-in Tanks

    Product Details 2

     Autonomous RTK Installation

    Product Details 4

    Plug-in Battery

    Product Details 6

    IP65 Rating Waterproof

    Product Details 3

    Front & Rear FPV Cameras Installation

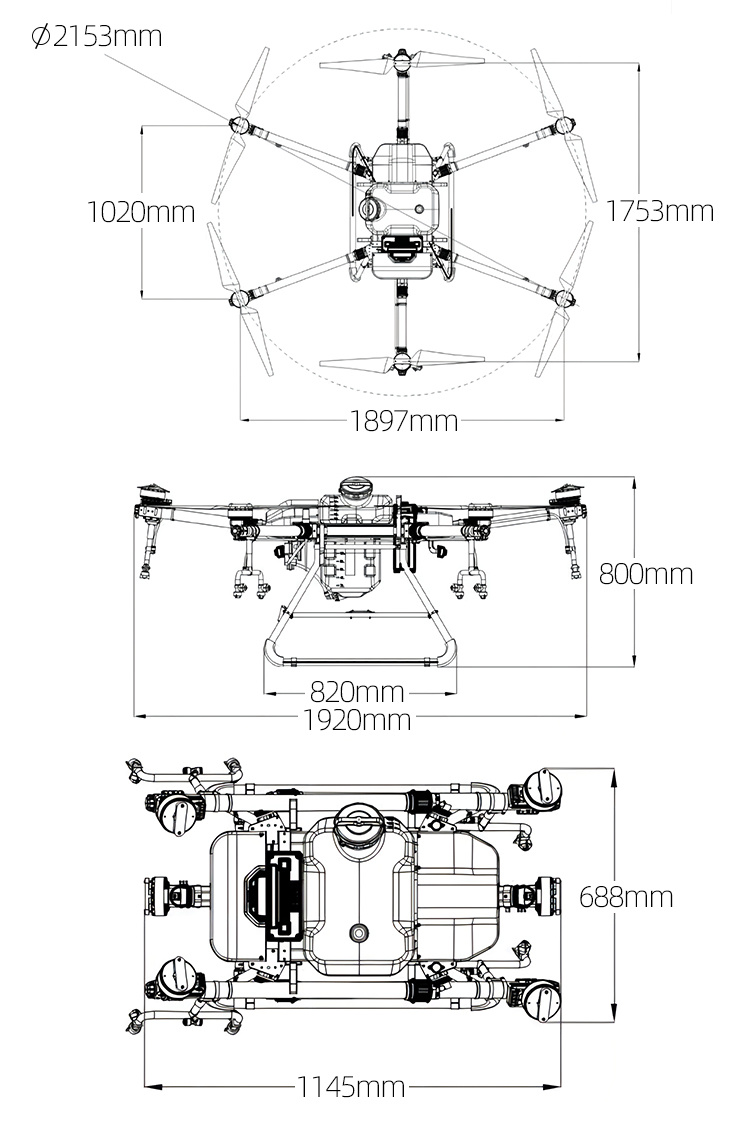

    Three-dimensional Dimensions

    Three-dimensional Dimensions

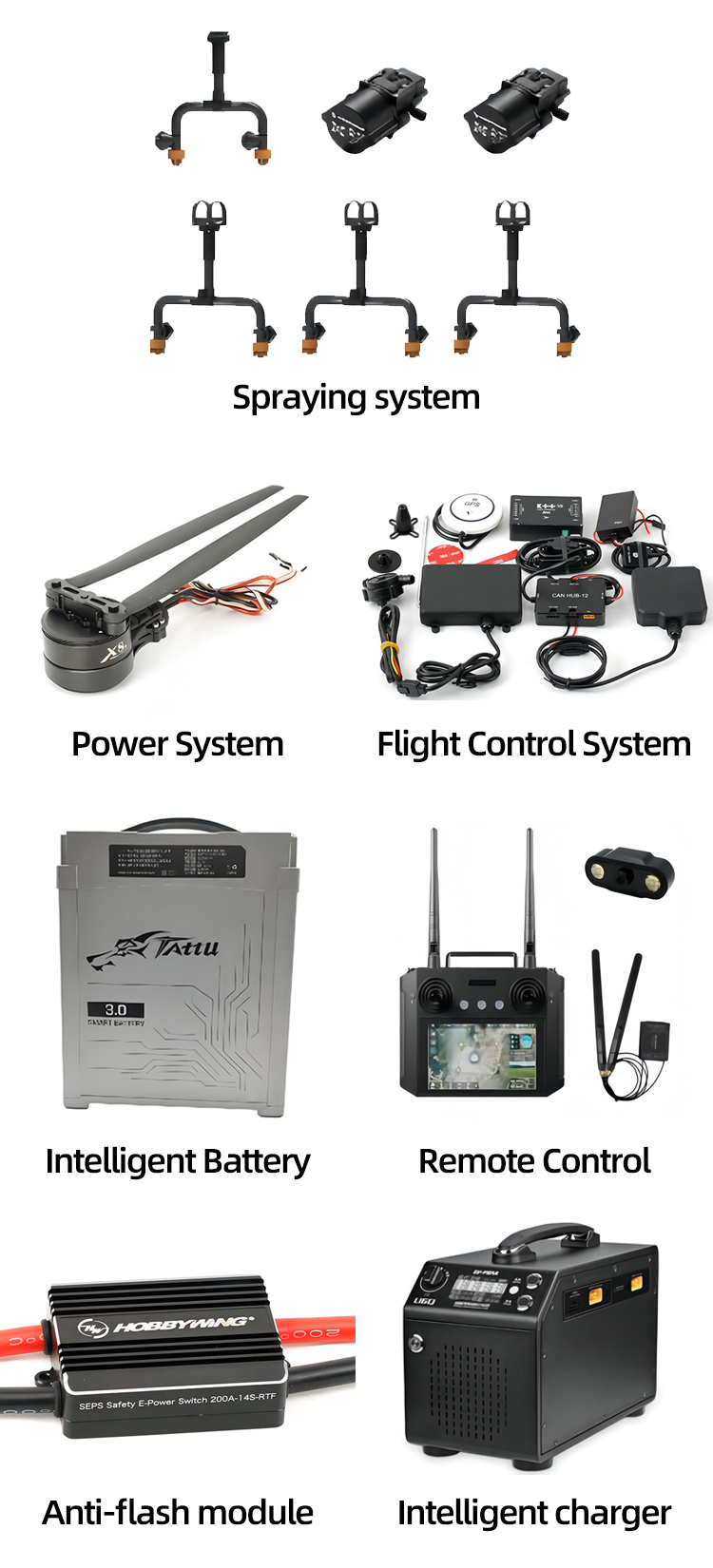

    Accessory List

    Accessory List 1

    Spraying System

    Accessory List 2

    Power System

    Accessory List 6

    Anti-flash Module

    Accessory List 3

    Flight Control System

    Accessory List 5

    Remote Control

    Accessory List 4

    Intelligent Battery

    Accessory List 7

    Intelligent Charger


    1. What is the best price for your product?
    We will quote based on the quantity of your order, the higher the quantity the higher the discount.

    2. What is the minimum order quantity?
    Our minimum order quantity is 1 unit, but of course there is no limit to the number of units we can purchase.

    3. How long is the delivery time of the products?
    According to the production order dispatch situation, generally 7-20 days.

    4. What is your payment method?
    Wire transfer, 50% deposit before production, 50% balance before delivery.

    5. What is your warranty time? What is the warranty?
    General UAV frame and software warranty of 1 year, the warranty of wearing parts for 3 months.
