Product Description
Product Description
| Unfolded size | 1216mm*1026mm*630mm |
| Folded size | 620mm*620mm*630mm |
| Product wheelbase | 1216mm |
| Arm size | 37*40mm / carbon fiber tube |
| Tank volume | 10L |
| Product weight | 5.6kg (frame) |
| Full load weight | 25kg |
| Power system | E5000 advanced version / Hobbywing X8 (optional) |

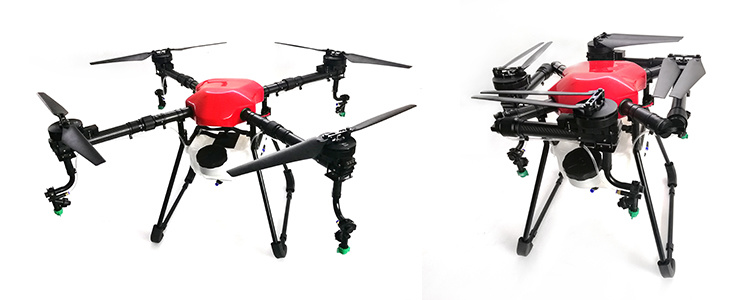

F10 Suspended plant protection platform frame

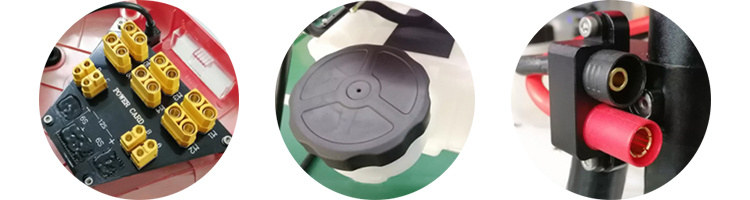

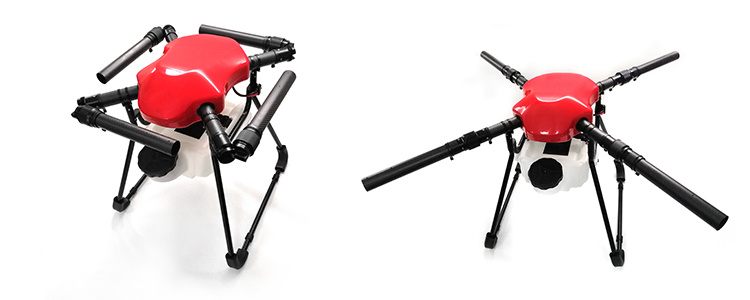

| Streamlined fuselage design | Quick embracing type folding | Efficient downward pressure spraying |
| High-power divider | Super large drug intake (10L) | Fast plug-in power interface |

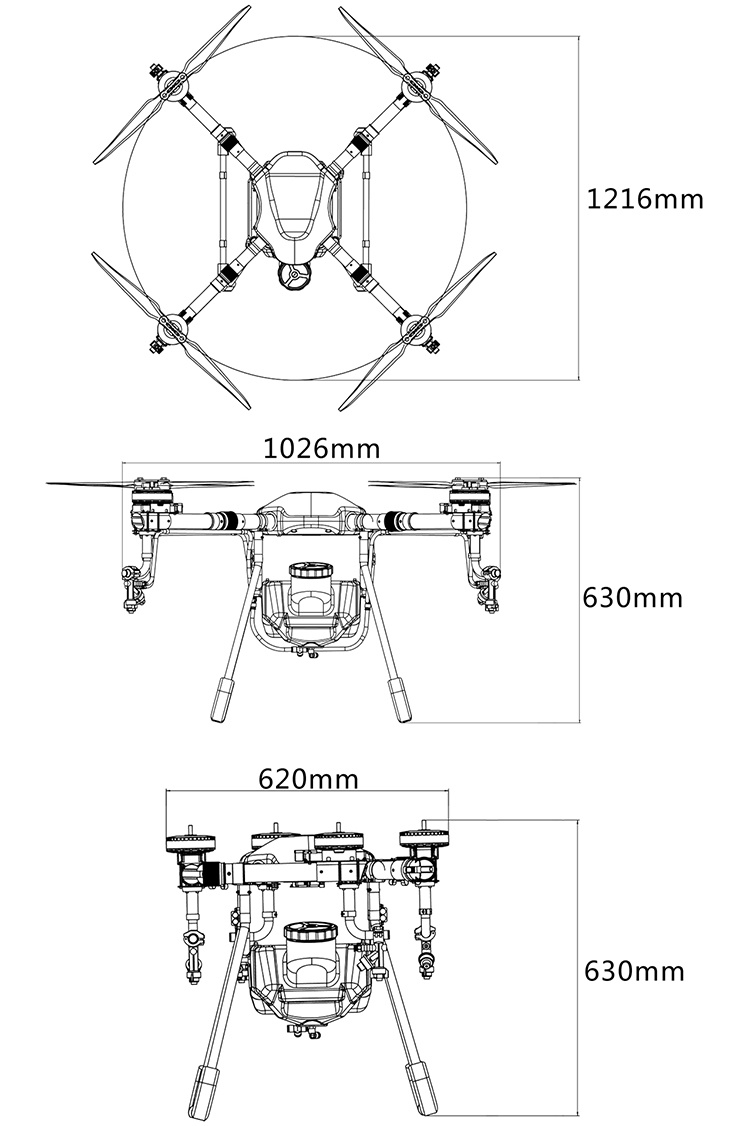

Three-dimensional Dimensions
Company Profile
FAQ
1.What is the best price for your product?
We will quote based on the quantity of your order, the higher the quantity the higher the discount.
2.What is the minimum order quantity?
Our minimum order quantity is 1 unit, but of course there is no limit to the number of units we can purchase.
3.How long is the delivery time of the products?
According to the production order dispatch situation, generally 7-20 days.
4.What is your payment method?
Wire transfer, 50% deposit before production, 50% balance before delivery.
5.What is your warranty time? What is the warranty?
General UAV frame and software warranty of 1 year, the warranty of wearing parts for 3 months.
-
