DLE 20 Engine Product Parameters
| Core Performance |
|
| Performance | 2.5HP / 9000rpm |
| Idle Speed | 1750rpm |
| Thrust (100m above sea level) | 6.3kg |
| Thrust (1800m above sea level) | 5.6kg |
| Applicable Propeller Sizes | 14 * 10, 15 * 8, 16 * 6, 17 * 6 |
| Applicable Spark Plug Model | NGK CM6 |
| Specifications & Weight |
|
| Displacement | 20cm³ |
| Bore * Stroke | 32mm * 25mm |
| Compression Ratio | 10.5 : 1 |
| Lubrication Mix Ratio | 30 : 1 |
| Main Engine Weight | 660g |
| Exhaust Pipe Weight | 80g |
| Igniter Weight | 140g |
| Igniter Operating Voltage | 4.8V - 8.4V |

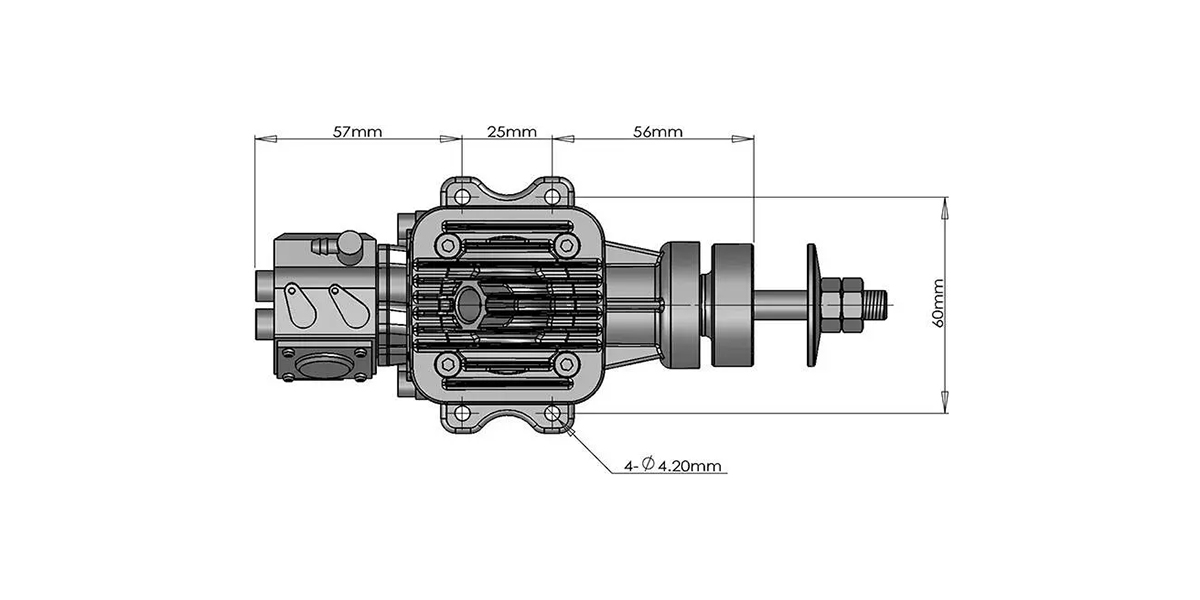

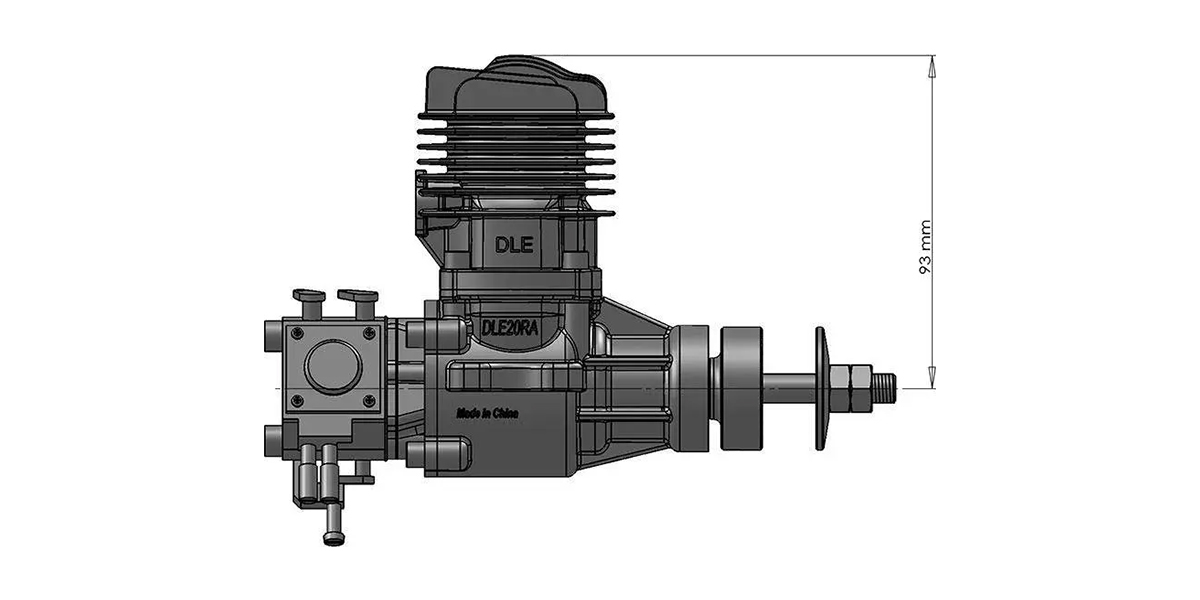

Product Size
FAQ
1. Who are we?
We are an integrated factory and trading company, with our own factory production and 65 CNC machining centers. Our customers are all over the world, and we have expanded many categories according to their needs.
2. How can we guarantee quality?
We have a special quality inspection department before we leave the factory, and of course it is very important that we will strictly control the quality of each production process throughout the whole production process, so our products can reach a 99.5% pass rate.
3. What can you buy from us?
Professional drones, unmanned vehicles and other devices with high quality.
4. Why should you buy from us not from other suppliers?
We have 19 years of production, R&D and sales experience, and we have a professional after sales team to support you.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, FCA, DDP;
Accepted Payment Currency: USD, EUR, CNY.
