Folding Drone Spraying Frame for Agricultural Spraying with 10L Load 4 Axes Carbon Fiber Material

Folding Drone Spraying Frame for Agricultural Spraying with 10L Load 4 Axes Carbon Fiber Material Featured Image
  • Folding Drone Spraying Frame for Agricultural Spraying with 10L Load 4 Axes Carbon Fiber Material
  • Folding Drone Spraying Frame for Agricultural Spraying with 10L Load 4 Axes Carbon Fiber Material
  • Folding Drone Spraying Frame for Agricultural Spraying with 10L Load 4 Axes Carbon Fiber Material
  • Folding Drone Spraying Frame for Agricultural Spraying with 10L Load 4 Axes Carbon Fiber Material
  • Folding Drone Spraying Frame for Agricultural Spraying with 10L Load 4 Axes Carbon Fiber Material
  • Folding Drone Spraying Frame for Agricultural Spraying with 10L Load 4 Axes Carbon Fiber Material

Short Description:


  • FOB Price: US $640-860 / Piece
  • Size: 1216mm*1026mm*630mm
  • Weight: 5.6KG
  • Tank volume: 10L
  • Power system: E5000 advanced version / Hobbywing X8 (optional)

    • Product Detail

    Product Tags

    Product Description

    Product Description

    Unfolded size 1216mm*1026mm*630mm
    Folded size 620mm*620mm*630mm
    Product wheelbase 1216mm
    Arm size 37*40mm / carbon fiber tube
    Tank volume 10L
    Product weight 5.6kg (frame)
    Full load weight 25kg
    Power system E5000 advanced version / Hobbywing X8 (optional)

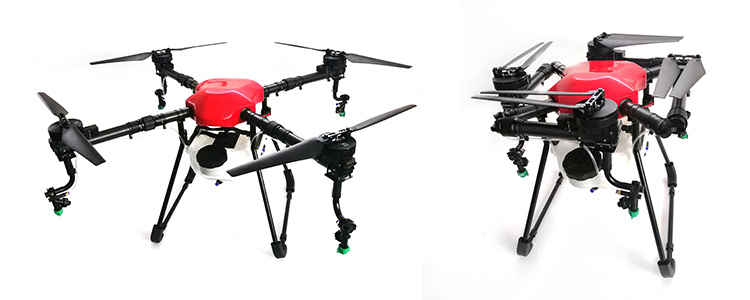

    F10 Suspended plant protection platform frame
    Folding Drone Spraying Frame for Agricultural Spraying with 10L Load 4 Axes Carbon Fiber MaterialFolding Drone Spraying Frame for Agricultural Spraying with 10L Load 4 Axes Carbon Fiber Material

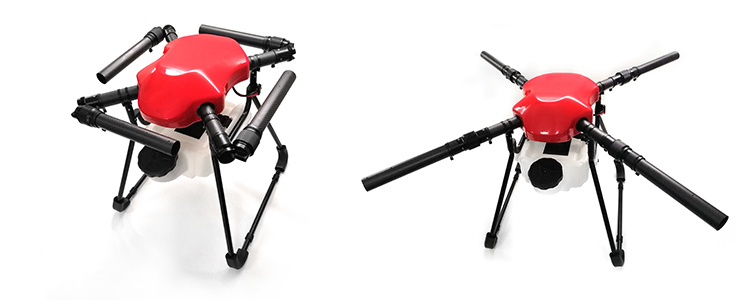

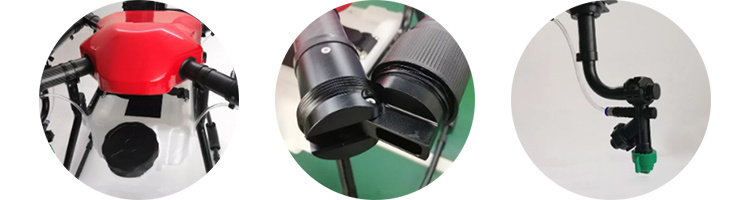

    Streamlined fuselage design Quick embracing type folding Efficient downward pressure spraying

    Folding Drone Spraying Frame for Agricultural Spraying with 10L Load 4 Axes Carbon Fiber Material

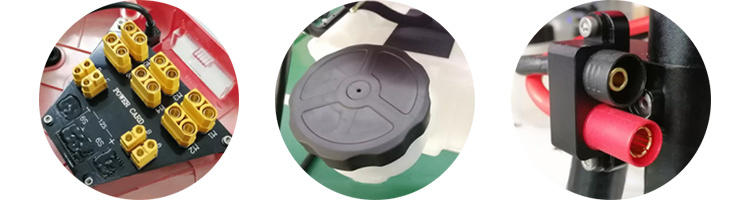

    High-power divider Super large drug intake (10L) Fast plug-in power interface

    Folding Drone Spraying Frame for Agricultural Spraying with 10L Load 4 Axes Carbon Fiber Material

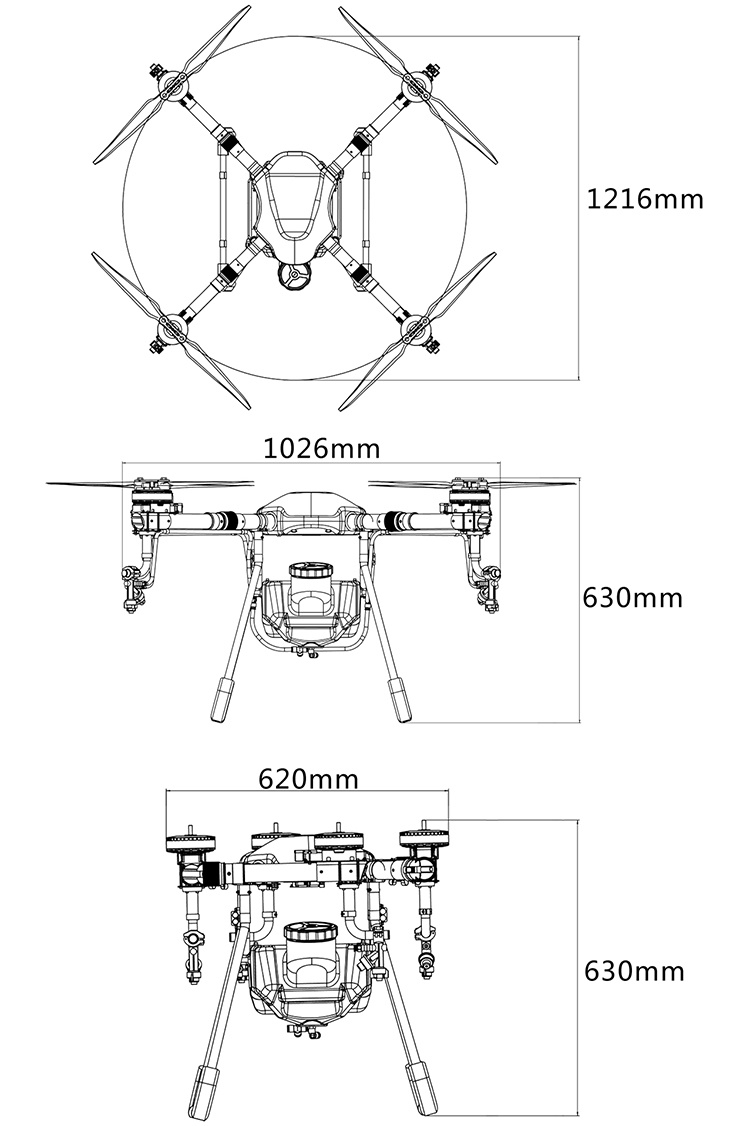

    Three-dimensional Dimensions

    Folding Drone Spraying Frame for Agricultural Spraying with 10L Load 4 Axes Carbon Fiber Material

    Company Profile

    Folding Drone Spraying Frame for Agricultural Spraying with 10L Load 4 Axes Carbon Fiber Material

    FAQ

    1.What is the best price for your product?

    We will quote based on the quantity of your order, the higher the quantity the higher the discount.



    2.What is the minimum order quantity?

    Our minimum order quantity is 1 unit, but of course there is no limit to the number of units we can purchase.



    3.How long is the delivery time of the products?

    According to the production order dispatch situation, generally 7-20 days.



    4.What is your payment method?

    Wire transfer, 50% deposit before production, 50% balance before delivery.



    5.What is your warranty time? What is the warranty?

    General UAV frame and software warranty of 1 year, the warranty of wearing parts for 3 months.
