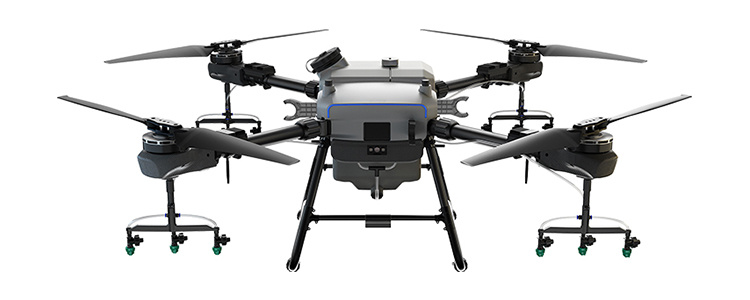

New T30 Intelligent Plant Protection Uav Spray 30L Spray Pesticides Drone for Agriculture Price

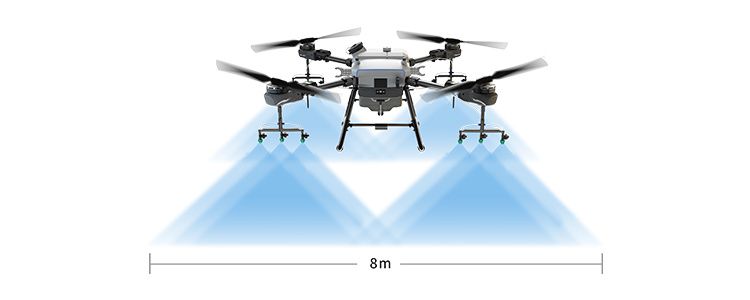

|Effective spray (depending on the crop)||6~8m|
|Whole machine weight (including battery)||40.6kg|
|Maximum effective takeoff weight (near sea level)||77.8kg|
|Hovering time||>20min (No load)|
|>8min (Full load)|
|Maximum flight speed||8m/s(GPS mode)|
|Positioning accuracy (good GNSS signal, RTK enabled)||Horizontal ± 10cmVertical ± 10cm|

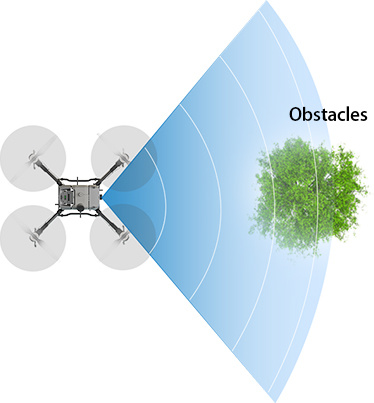

|Avoidance perception range||1~40m (Avoidance front and rear according to the flight direction)|
HTU T30 intelligent drone supports 30L large medicine box and 45L sowing box, which is especially suitable for large plot operation and medium plot and spraying and sowing areas with demand. Customers can choose the most suitable configuration according to their actual needs, no matter they use it for themselves or undertake plant protection and flying defense business.Features
1. All-aviation aluminum main frame, light weight, high strength, impact resistance.
2. Module-level IP67 protection, no fear of water, dust. Corrosion resistance.
3. It can be applied to multi-scene crop drug spraying, sowing and spreading fertilizer.
4. Easy to fold, can be installed in common agricultural vehicles, easy to transfer.

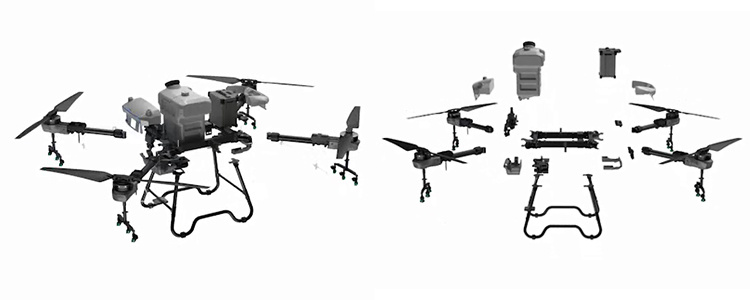

5. Modular design, most parts can be replaced by themselves.
· Full aviation aluminum main frame, reduce weight while high strength, impact resistance.
· Core components closed treatment, avoid dust entry, resistant to liquid fertilizer corrosion.

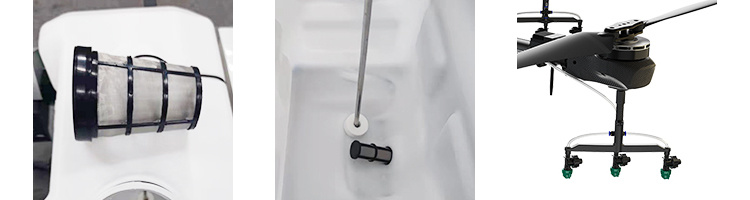

· High toughness, foldable, triple filter screen.
Spraying and Spreading System
Equipped with 30L oversized medicine box
· The operating efficiency is increased to 15 hectares/hour.
· Equipped with no manual pressure relief valve, automatic exhaust, equipped with pressure nozzle, liquid medicine does not drift, can support centrifugal nozzle, powder does not block.
· The full-range continuous level gauge shows the true liquid level.
|Medicine box capacity||30L|
|Nozzle type||High pressure Fan nozzle Support switching centrifugal nozzle|
|Number of nozzles||12|
|Maximum flow rate||8.1L/min|

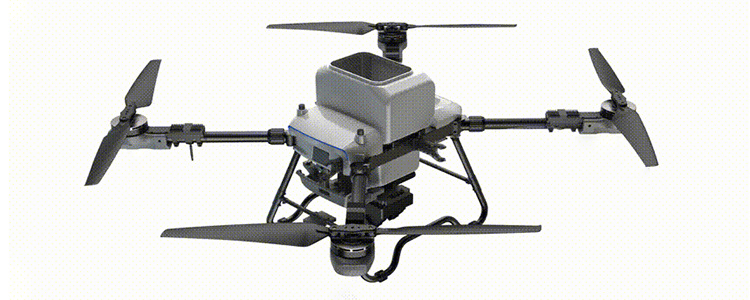

Equipped with 45L bucket, large load
· Up to 7m sowing width, the Air Spray is more uniform, does not hurt the seeds, does not hurt the machine.
· Full anti-corrosion, washable, no blockage.
· Measuring material weight, real time, anti-overweight.
|Material box capacity||45L|
|Feeding method||Roller quantification|
|Bulk material method||High pressure air|

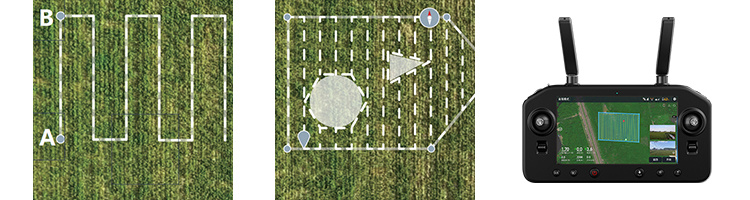

· Provides multiple modes of operation, including fully autonomous, AB points, and manual operations.
· A variety of enclosure methods: RTK hand-held pointing, airplane dot, Map dot.
· High-bright screen remote control, you can see clearly under the scorching sun, 6-8 hours long battery life.
· Fully automatic generation of sweeping routes to prevent leakage.

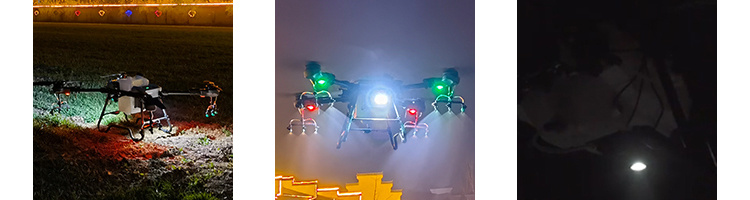

· Equipped with searchlights and help lights, it can also operate safely at night.
· Night navigation: Front and rear 720P HIGH definition FPV, rear FPV can be flipped down to view the ground.
Intelligent auxiliary function

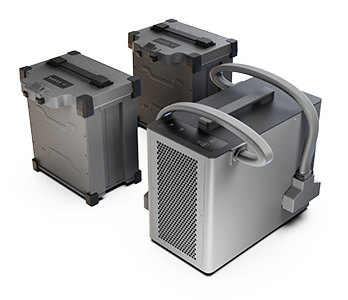

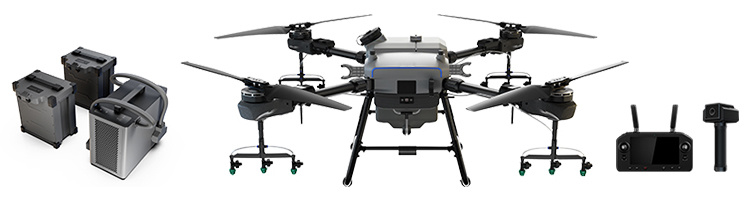

Drone*1 Remote control*1 Charger*1 Battery*2 Dotter*1
1.What is the best price for your product?
We will quote based on the quantity of your order, the higher the quantity the higher the discount.
2.What is the minimum order quantity?
Our minimum order quantity is 1 unit, but of course there is no limit to the number of units we can purchase.
3.How long is the delivery time of the products?
According to the production order dispatch situation, generally 7-20 days.
4.What is your payment method?
Wire transfer, 50% deposit before production, 50% balance before delivery.
5.What is your warranty time? What is the warranty?
General UAV frame and software warranty of 1 year, the warranty of wearing parts for 3 months.
