20L Pesticide Spray Uav Crop Sprayer Drone Frame Agriculture Spraying Drone Frame

Short Description:

  • FOB Price: US $930-1030 / Piece
  • Size: 1397mm*1397mm*765mm
  • Weight: 19KG
  • Tank volume: 20L
  • Power system: Hobbywing X9 Plus
  • Product Detail

    Product Tags

    Products Introduction


    HF F20 plant protection drone platform is an upgraded version of F10 4-axis 10L UAV agricultural drone. The main difference between the two is the exterior design and folding parts. We all know that the folding parts on agricultural drones are one of the most critical parts, and the folding parts of F20 are injection molded for a more stable and durable structure; the whole machine adopts a modular design, and modules such as batteries and water tanks can be plugged and replaced at any time, which makes it quicker to complete the actions of replenishing the liquid and replacing batteries during spraying operations.

    The HF F20 spraying drone has the ability to cover a variety of uneven terrain, making it the perfect precision spraying tool. Crop drones greatly reduce the time and cost of manual spraying and hiring crop dusters. Smart agriculture is a worldwide trend and smart drones play an important role in this plan and our drones are ready to be deployed as agricultural crops.


    Unfolded size 1397mm*1397mm*765mm
    Folded size 775mm*765mm*777mm
    Max diagonal wheelbase 1810mm
    Spray tank volume 20L
    Flight parameters
    Suggested configuration Flight controller: V9
    Propulsion system: Hobbywing X9 Plus
    Battery: 14S 28000mAh
    Total weight 19 kg (Excluding battery)
    Max takeoff weight 49 kg (at sea level)
    Hovering time 25min (28000mAh & takeoff weight of 29 kg)
    13min (28000mAh & takeoff weight of 49 kg)
    Max spray width 6-8 m (4 nozzles,at a height of 1.5-3m above crops)

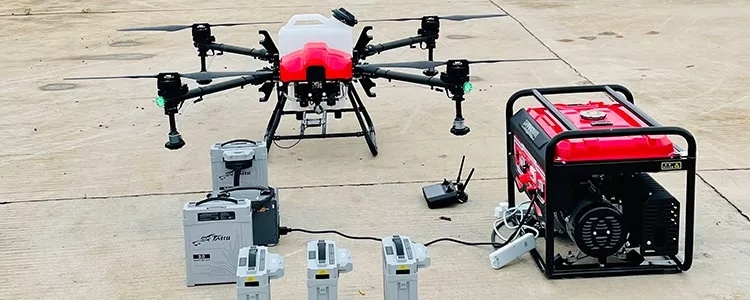

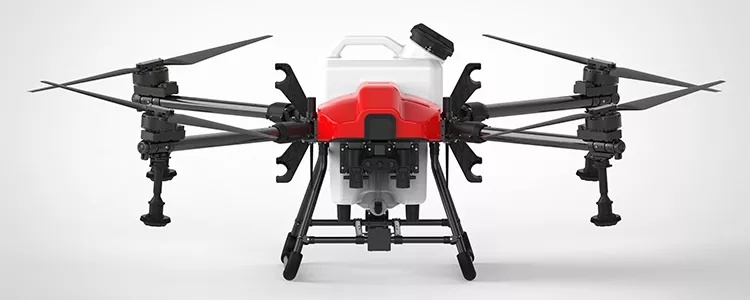

    Product Real Shot

    Product Real Shot 1
    Product Real Shot 2
    Product Real Shot 3

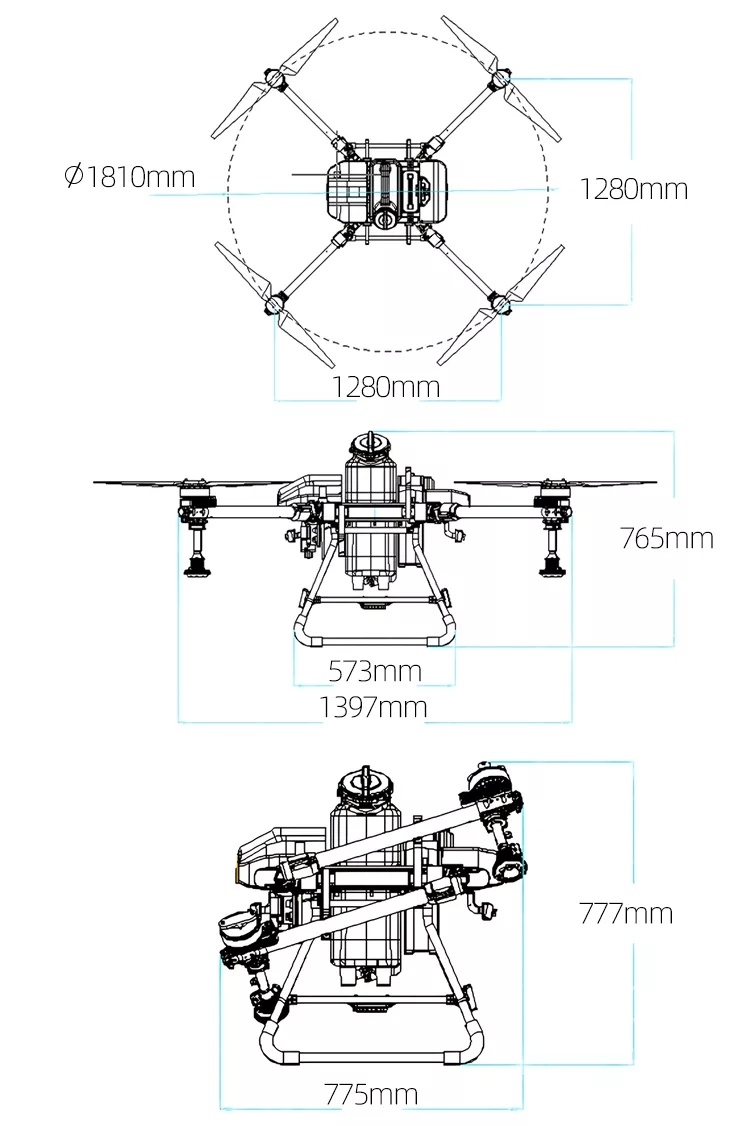

    Three-dimensional Dimensions

    Three-dimensional Dimensions

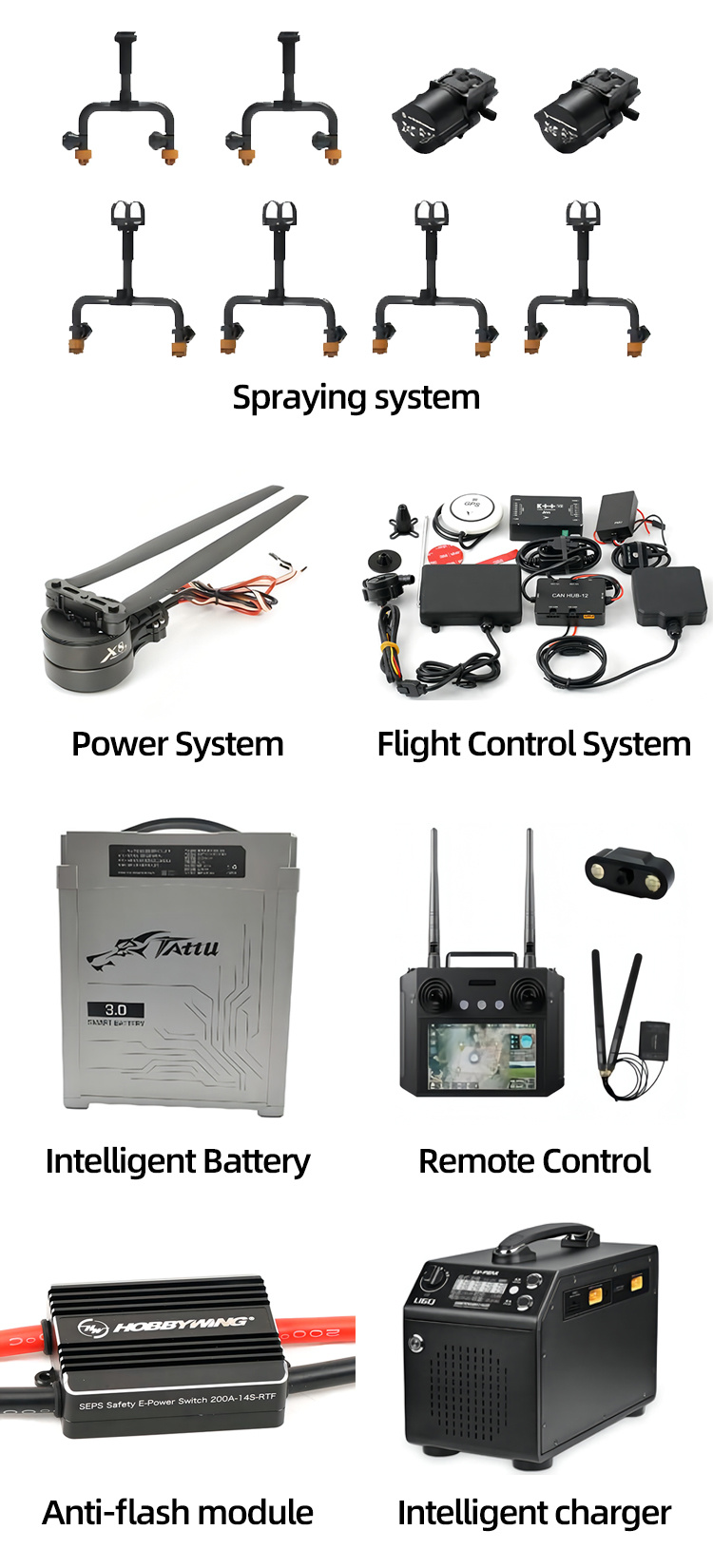

    Accessory List

    Accessory List 1

    Spraying System

    Accessory List 2

    Power System

    Accessory List 6

    Anti-flash Module

    Accessory List 3

    Flight Control System

    Accessory List 5

    Remote Control

    Accessory List 4

    Intelligent Battery

    Accessory List 7

    Intelligent Charger


    1. What is the best price for your product?
    We will quote based on the quantity of your order, the higher the quantity the higher the discount.

    2. What is the minimum order quantity?
    Our minimum order quantity is 1 unit, but of course there is no limit to the number of units we can purchase.

    3. How long is the delivery time of the products?
    According to the production order dispatch situation, generally 7-20 days.

    4. What is your payment method?
    Wire transfer, 50% deposit before production, 50% balance before delivery.

    5. What is your warranty time? What is the warranty?
    General UAV frame and software warranty of 1 year, the warranty of wearing parts for 3 months.
