DLE 30 Engine Product Parameters
| Core Performance |
|
| Performance | 3.7HP / 8500rpm |
| Idle Speed | 1600rpm |
| Thrust (100m above sea level) | 8.5kg |
| Thrust (1800m above sea level) | 7.5kg |
| Applicable Propeller Sizes | 18 * 8, 18 * 10, 19 * 8, 20 * 8 |
| Applicable Spark Plug Model | NGK CM6 |
| Specifications & Weight |
|
| Displacement | 30.5cm³ |
| Bore * Stroke | 36mm * 30mm |
| Compression Ratio | 7.6 : 1 |
| Lubrication Mix Ratio | 30 : 1 |
| Main Engine Weight | 920g |
| Exhaust Pipe Weight | 60g |
| Igniter Weight | 130g |
| Igniter Operating Voltage | 4.8V - 8.4V |

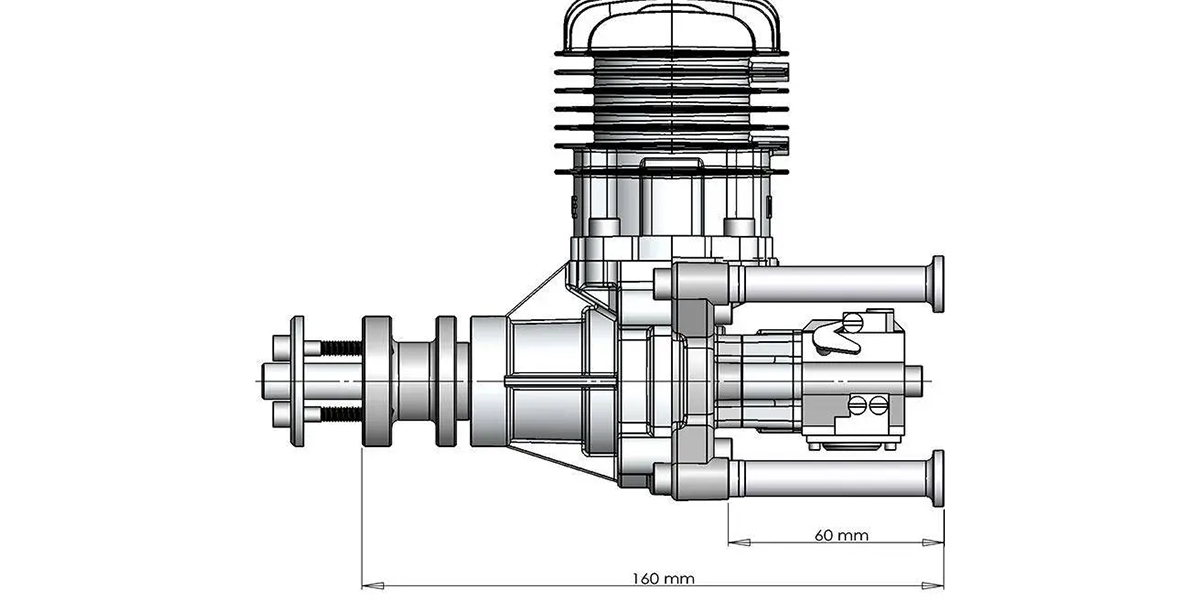

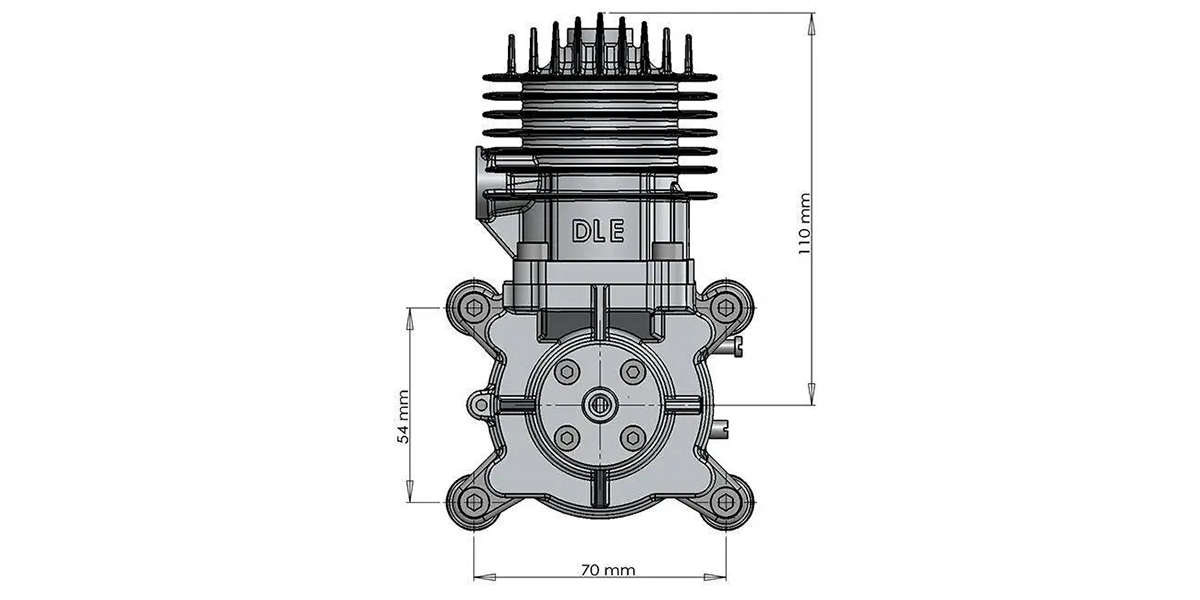

Product Size
