DLE 430 Engine Product Parameters
| Technical Parameters |
|
| Performance | 42HP / 6800rpm |
| Max Speed | 7000rpm |
| Idle Speed | 1000rpm |
| Bore | 70mm |
| Stroke | 56mm |
| Displacement | 430.8cc |
| Compression Ratio | Theoretical 11:1, Actual 6.5:1 |
| Reduction Ratio | 2.55 |
| Static Thrust | 110kg |
| Spark Plug | 14mm DLE‑8 |
| Spark Plug Gap | 0.6mm |
| Carburetor | DLE Self‑priming Type |
| Fuel | 93#, 97# Gasoline |
| Mixed Lubricant | 2T FD Grade Fully Synthetic Oil |
| Fuel‑Oil Mix Ratio | 50 : 1 |
| Gearbox Lubricant | Gear Oil, 85W‑140EP API‑GL5 GL6 SAE 140 EP |
| Ignition System | Dual DC Capacitor Discharge Ignition, 12V Power Supply, 5W each |
| Generator Power | Permanent Magnet Generator, 14.5V 90W |
| Starter Motor Current | 35A |
| Rotation Direction | Clockwise (Facing Propeller) |
| Cooling Method | Fan‑cooled |
| Weight | Main Engine: 27kg, Exhaust Pipe: 4.1kg, Total Weight: 32.25kg |
| Recommended Propeller | 1.5M Variable‑Pitch Carbon Fiber Propeller |

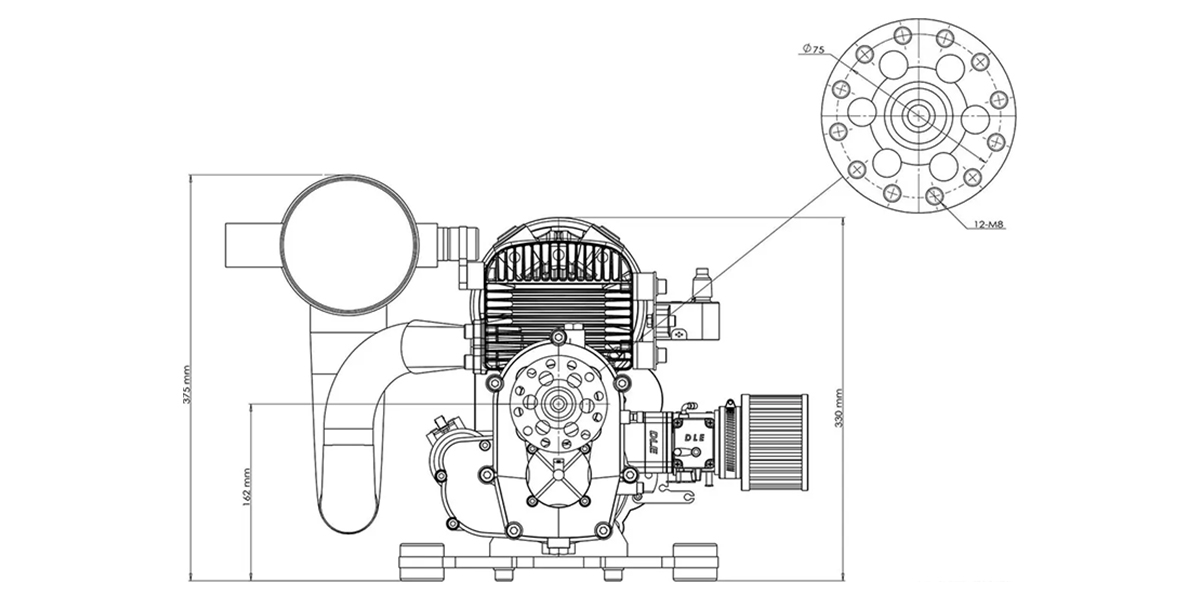

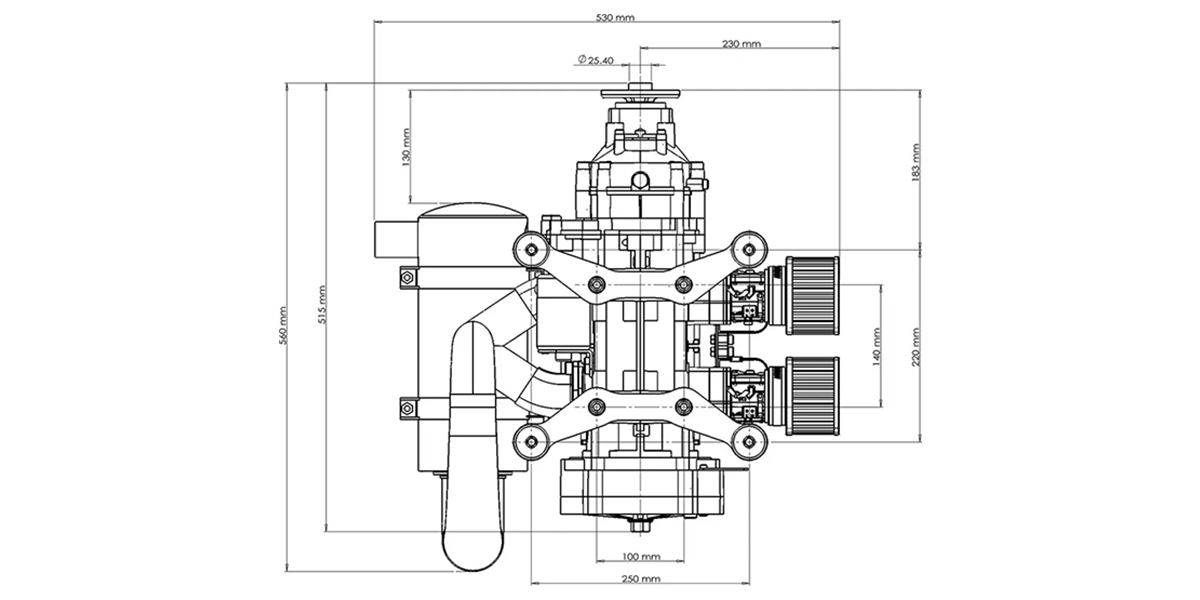

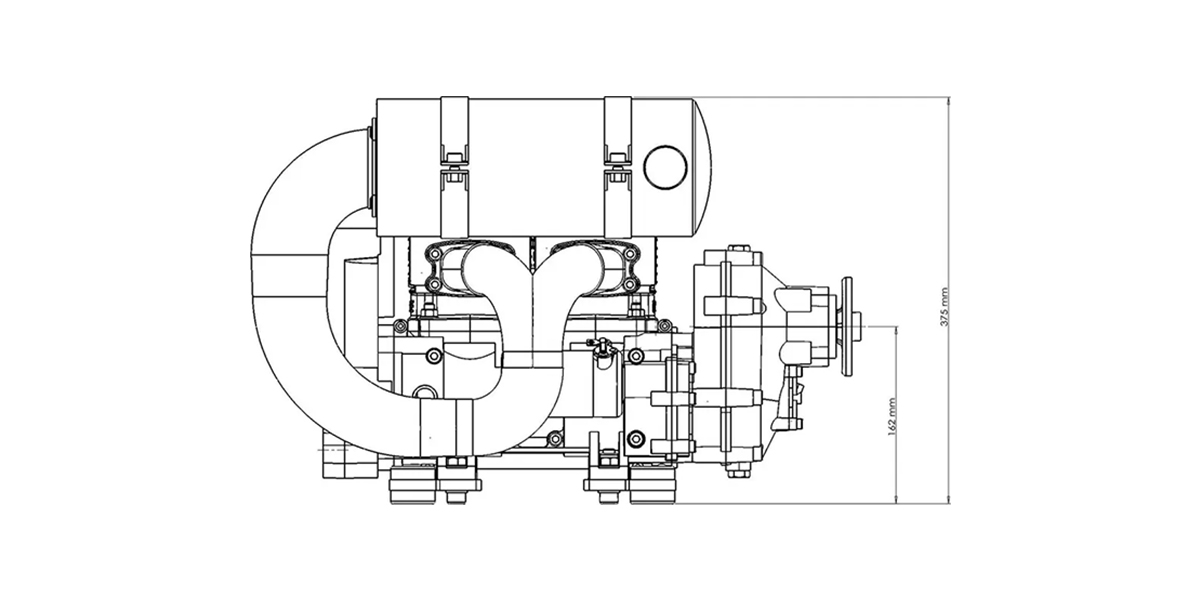

Product Size
