GF38-GE Drone Engine Product Description
GF38-GE has the installation size of 160-240 glow size 4 stroke engine, and it has power comparable to a 160-240. It is suitable for RC aircraft with takeoff weights of 8-12kg and is the best power configuration for the 160-240 level RC aircraft.
GF38-GE uses a CM6 spark plug and has standard directional exhaust pipe to make the low voice and high power. Integrated startup and power generation, safe and convenient startup, with a power generation of 150W. Rear mounted carburetor for easier engine adjustment. The connecting rod with needle roller bearings can better lubricate the pin shaft. The unique dual piston rings (one lubricating oil ring and one sealing ring) can better seal and lubricate. The cylinder liner is made of wear-resistant ductile iron, and the roundness tolerance of the inner hole in the cylinder block is within 0.01mm, which is much higher than the roundness tolerance of the inner hole of the aluminum alloy chrome plated cylinder liner, which is 0.03mm.
GF38-GE Features:
* Directional exhaust muffler for low voice.
* Integrated startup and power generation, with a power generation of 150W.
* The matched Walbro carburetor for reliable running and convenient installation.
* CNC carved and adjustable T-shaped engine mount for more stable engine installation and less vibration.
* CNC carved double needle roller bearing connecting rod.
* RCEXL Ignition with automatic advancing system.
* RCEXL spark plug CM6.
* High-quality bearings.
GF38-GE Drone Engine Technical Parameters
| Displacement | 37.97cc |
| Bore | 39mm |
| Stroke | 31.8mm |
| Practical Speed Range | 1800-8000rpm |
| Output Power | 3.58HP / 8300rpm |
| Static Thrust | 7.2kg |
| Fuel | 92# unleaded gasoline + fully synthetic 2T lubricant |
| Lubrication Ratio | 35 : 1 |
| Compression Ratio | 9 : 1 |
| Weight of Engine | 1310g |
| Weight of Exhaust | 19g |
| Weight of Ignition | 105g |
| Ignition Power | DC 4.8V-8.4V 1000mAh |
| Spark Plug Type | CM-6 |
| Recommended Propeller | 18*8-10, 19*8-10, 20*8 |
| Engine Power | 4.22HP / 3.58hp |
| Integrated Start-up and Power Generation | Control with no induction (no hall) |
| Starting voltage: Not less 12V starting current: <30A | |
| Generator output: DC12V, 150W / 6000rpm | |
| Weight | Electrical machinery: >250g |
| Weight of control system and voltage stabilizing system: >150g |

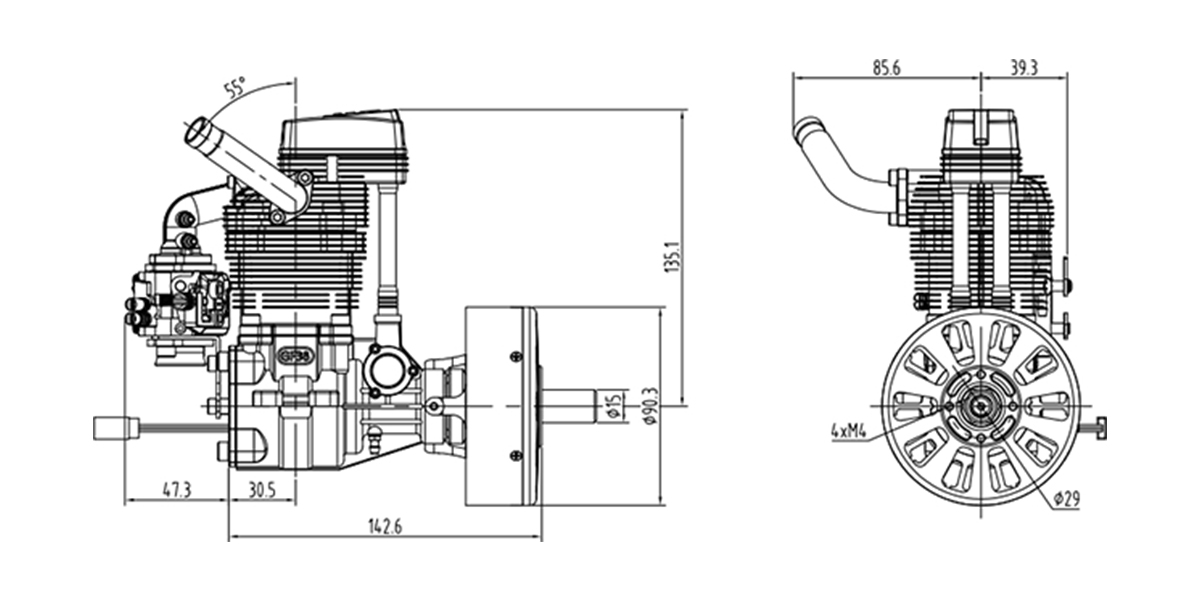

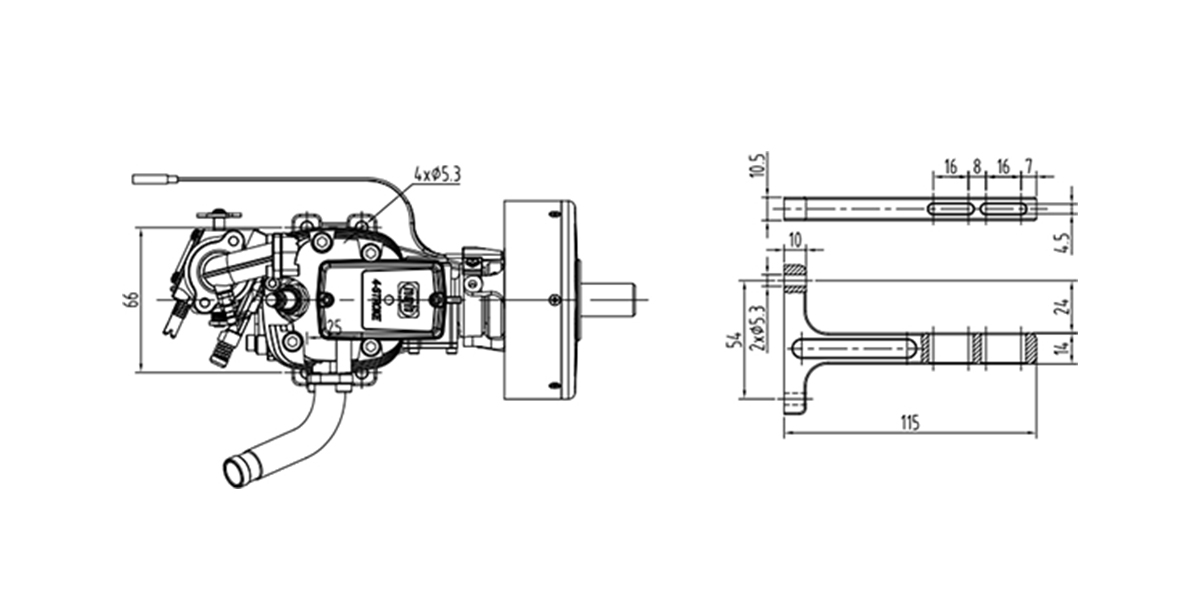

Product Size
