HF TX30 6-axis Ring Hugger Agricultural Drone – Quick Plug-in Water Tank

Short Description:

  • FOB Price: US $6940-7245 / Piece
  • Size: 2692mm*2619mm*885mm
  • Material: Aerospace carbon fiber + Aerospace aluminum
  • Weight: 24kg (not including battery)
  • Payload: 30L
  • Working efficiency: 15ha/hour
  • Product Detail

    Product Tags

    Product Detail:

    Terms and Conditions:
    Quality Warranty: 12 Months Free Parts Warranty, Human Causes Excluded
    Production Time: 7~10days upon Advance Payment
    Packing: High Quality Flight Cases



    1 High precision Gps system 11 The plane returned out of control
    2 Self planned routes 12 Aircraft low voltage return
    3 Night navigation function 13 Aircraft AB point memory operation
    4 Airframe stability and reliability, strong anti-interference 14 Aircraft self-planning operation
    5 Brushless water pump motor, super long life 15 Aircraft breakpoint memory
    6 Aircraft automatic fixed point 16 Aircraft breakpoints continue to spray
    7 Automatic return 17 High resolution FPV camera
    8 Aircraft automatic obstacle avoidance 18 Intelligent lithium battery with self heat dissipation
    9 Equipped fertilizer spreader for sowing and raising fertilizer 19 Alternate spray function, the nozzle can be switched separately
    10 Integrated smart remote control 20 Ground station, video transmission, anti-fall performance



    Basic Parameters Product Material Aviation carbon fiber + aviation aluminum
      Unfolded Size 2692mm*2619mm*885mm
    (including paddle)
      Folded Size 1192mm*623mm*885mm
      Total Weight 24kg
    (not including battery)
      Maximum Takeoff Weight 66.5kg
      Water Tank Capacity 30L

    Integral Frame

    One-piece body frame, streamlined structure and high strength, with good durability and reliability

    Integral Frame

    One Machine for Multiple Uses (Spray & Spread)

    Quickly changeable spreading system and spraying system to meet the operational needs of two different scenarios

    One Machine for Multiple Uses (Spray & Spread)-1

    Flight Parameters Max. Flight Altitude 5000m
    Max. Wind Speed 8m/s
    Hovering Time 6-20min
    Full Load Flight Time 13-18min
    Flight Speed 1-20m/s
    Maximum Operating Speed 8m/s
    Spraying Parameters Water Pump Type Double brushless DC water pump
    Spraying Speed 8-10L/min
    Nozzle Type Imported high-pressure atomization nozzle
    Spraying Efficiency 15ha/h
    Spraying Width 6-12m
    Atomized Droplet Size 60-90μm

    Spreading System

    One Machine for Multiple Uses (Spray & Spread)-2

    ·Multi-seal Waterproof:
    The spreader adopts multiple waterproof processes, the whole system reaches IP67 waterproof level and can be washed directly.
    ·Tool-free Quick Disassembly:
    Separated quick disassembly design, using three hand screws for quick disassembly, more convenient maintenance and replacement.
    ·360° High-flow Spreading:
    Adopting 360° sowing, the maximum outlet area is increased to 43cm², improving the sowing efficiency.
    ·Multi-type Granule Spreading:
    Granule spreading system can support different types of grain, fertilizer, bait, etc.
    Solid granule spreading, suitable for sowing, fertilizing, baiting and other spreading operations.
    ·Optional Weighing Module:
    With the optional weighing module, the weight of the remaining material can be displayed in real time, and the flow calibration function of different particles can be realized.


     Detail (1)

    Detail (2)

     Detail (3)

    Pluggable Water Tank and Sowing Box

    FPV HD Camera

    Pluggable Lithium Battery

     Detail (4)

     Detail (5)

    Detail (6)

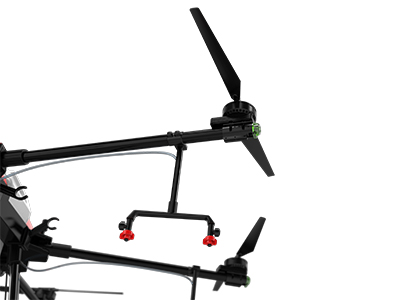

    Carbon Fiber Propeller and Arm

    Integrated Motor and Electrionic Governor

    Optional RTK

    Detail (7)

     Detail (8)

    Detail (9)

    Dustproof and Waterproof, Directly Washable

    Carbon Fiber Fuselage

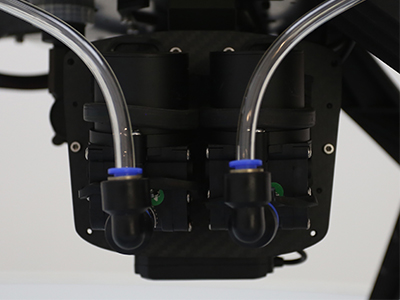

    Double Water Pump

    Basic Configuration

    Basic Configuration

    1.Complete drone*1 2.Smart battery*1 3.Intelligent charger*1 4.Fpv camera*1 5.Terrain following radar*1
    6.Remote controller*1 7.Maintenance toolkit*1 8.Aluminum transport case*1 9.Handheldmappingdevice*1 10.Obstacle Avoidance Radar*2


    1. Who are we?

    We are an integrated factory and trading company, with our own factory production and 65 CNC machining centers. Our customers are all over the world, and we have expanded many categories according to their needs.

    2. How can we guarantee quality?
    We have a special quality inspection department before we leave the factory, and of course it is very important that we will strictly control the quality of each production process throughout the whole production process, so our products can reach a 99.5% pass rate.

    3.What can you buy from us?

    Professional drones, unmanned vehicles and other devices with high quality.

    4.Why should you buy from us not from other suppliers?

    We have 19 years of production, R&D and sales experience, and we have a professional after sales team to support you.

    5. What services can we provide?

    Accepted Delivery Terms: FOB, CIF, EXW, FCA, DDP;

    Accepted Payment Currency: USD, EUR, CNY;

    Accepted Payment Type: T/T, L/C, D/P, D/A, Credit Card.
