DRONE SYSTEM |
C30 |
C50 |
|
Unloaded Spraying drone weight (without batteries) |
29.8kg |
31.5kg |
|
Unloaded Spraying drone weight (with batteries) |
40kg |
45kg |
|
Unloaded Spreading drone weight (without battery) |
30.5kg |
32.5kg |
|
Unloaded Spreading drone weight (without battery) |
40.7kg |
46kg |
|
Max Take-off weight |
70kg |
95kg |
|
Wheelbase |
2025mm |
2272mm |
|
Expand Size |
Spraying drone:2435*2541*752mm |
Spraying drone:2845*2718*830mm |
|
Spreading drone:2435*2541*774mm |
Spreading drone:2845*2718*890mm |
|
|
Folded size |
Spraying drone:979*684*752mm |
Spraying drone:1066*677*830mm |
|
Spreading drone:979*684*774mm |
Spreading drone:1066*677*890mm |
|
|
No-load hovering time |
17.5min(Test by 14S 30000mah) |
20min(Test by 18S 30000mah) |
|
Full load hovering time |
7.5min(Test by 14S 30000mah) |
7min(Test by 18S 30000mah) |
|
Working temperature |
0-40ºC |
|

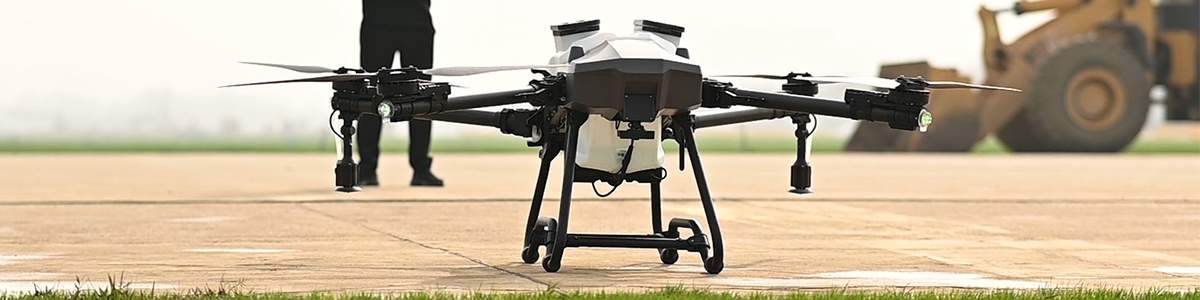

Hongfei C Series Agricultural Drone
Choose between 30kg and 50kg load models, new high-strength truss fuselage structure, wiring-free integrated grouped flight control, with high-flow impeller pumps and water-cooled centrifugal spray nozzles, the deep integration of software and hardware, to realize the whole machine intelligent sensing.
 |
||
|
New structure |
||
 |
 |
 |
|

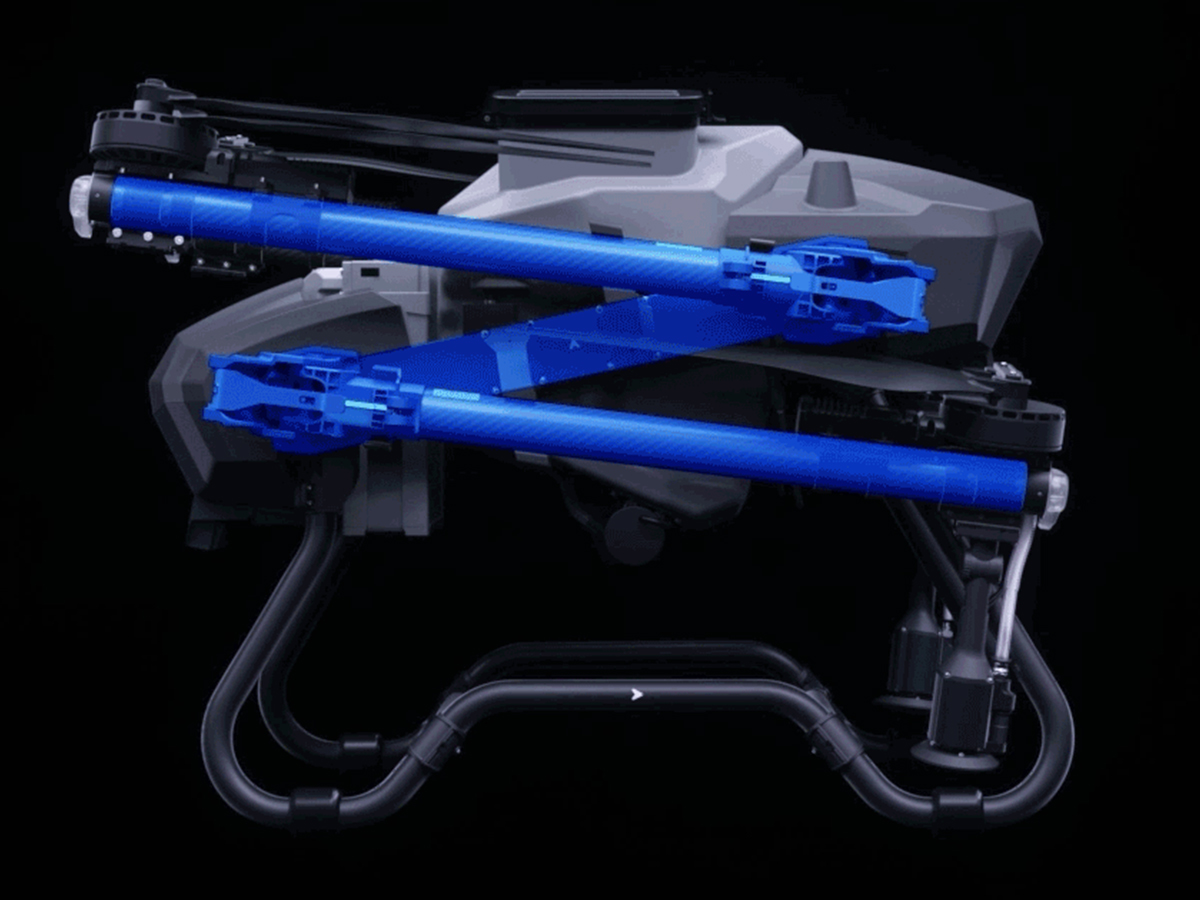

Z-Type Folding Minish folding size, easy transport |

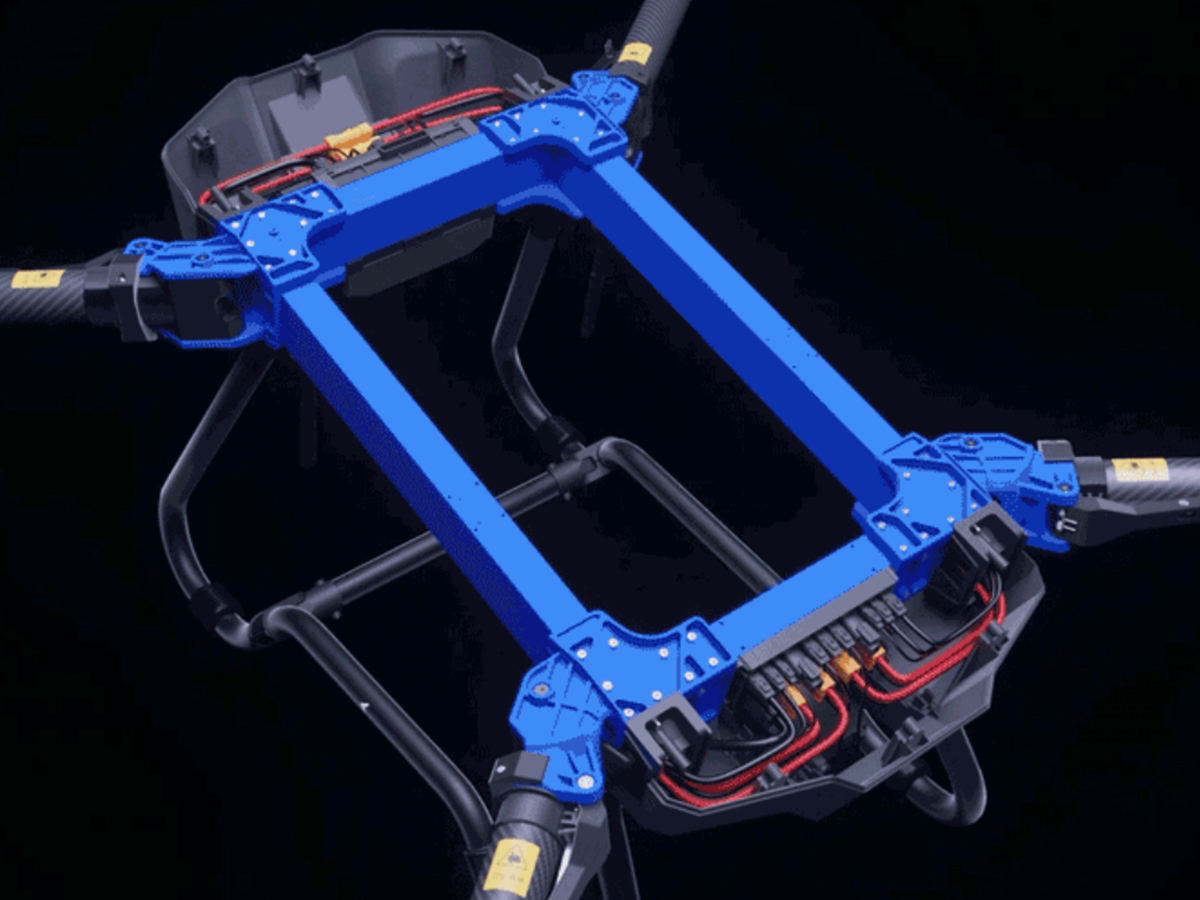

Truss Structure Double the strength, sturdy and durable |

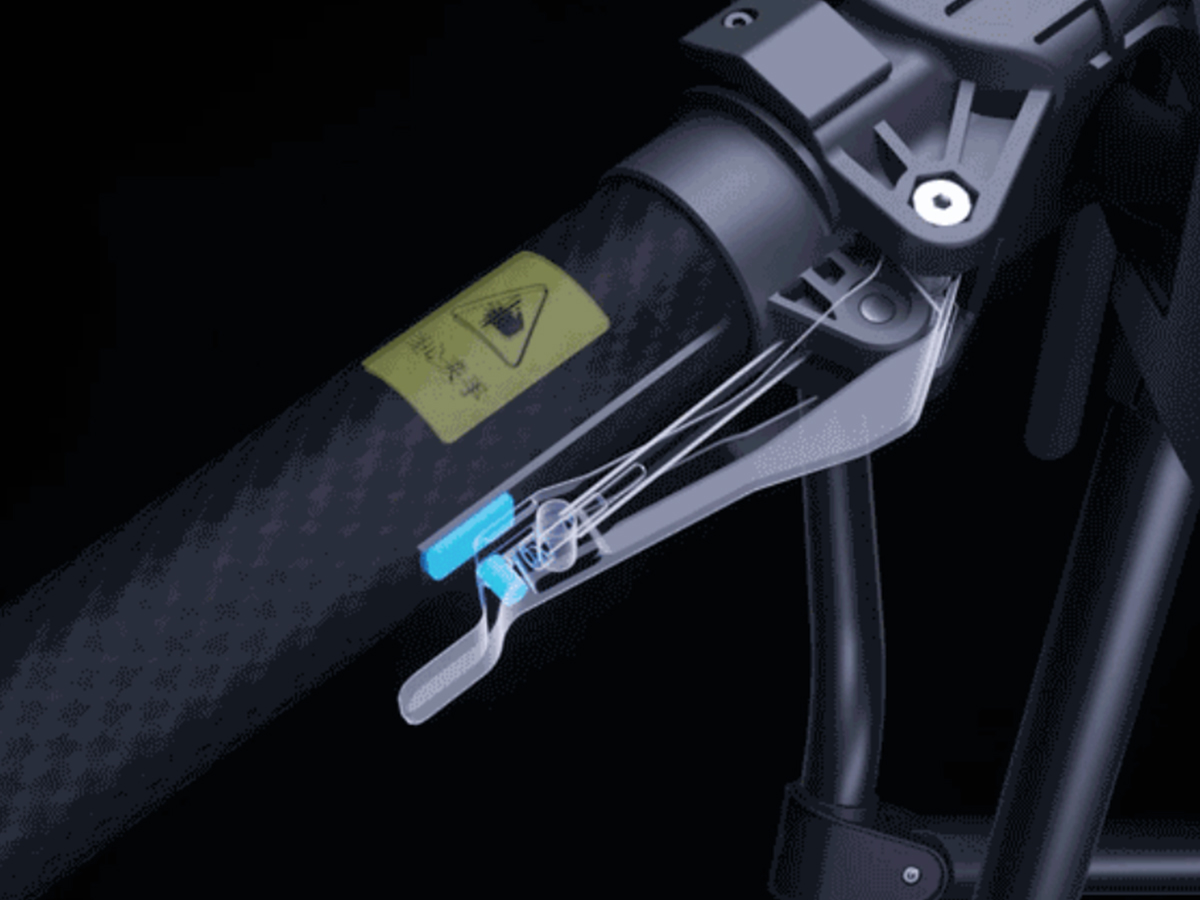

Press-Locking Handle Intelligent sensor, convenient operation, sturdy&durable |
|
New experience |
||
 |
 |
 |
|

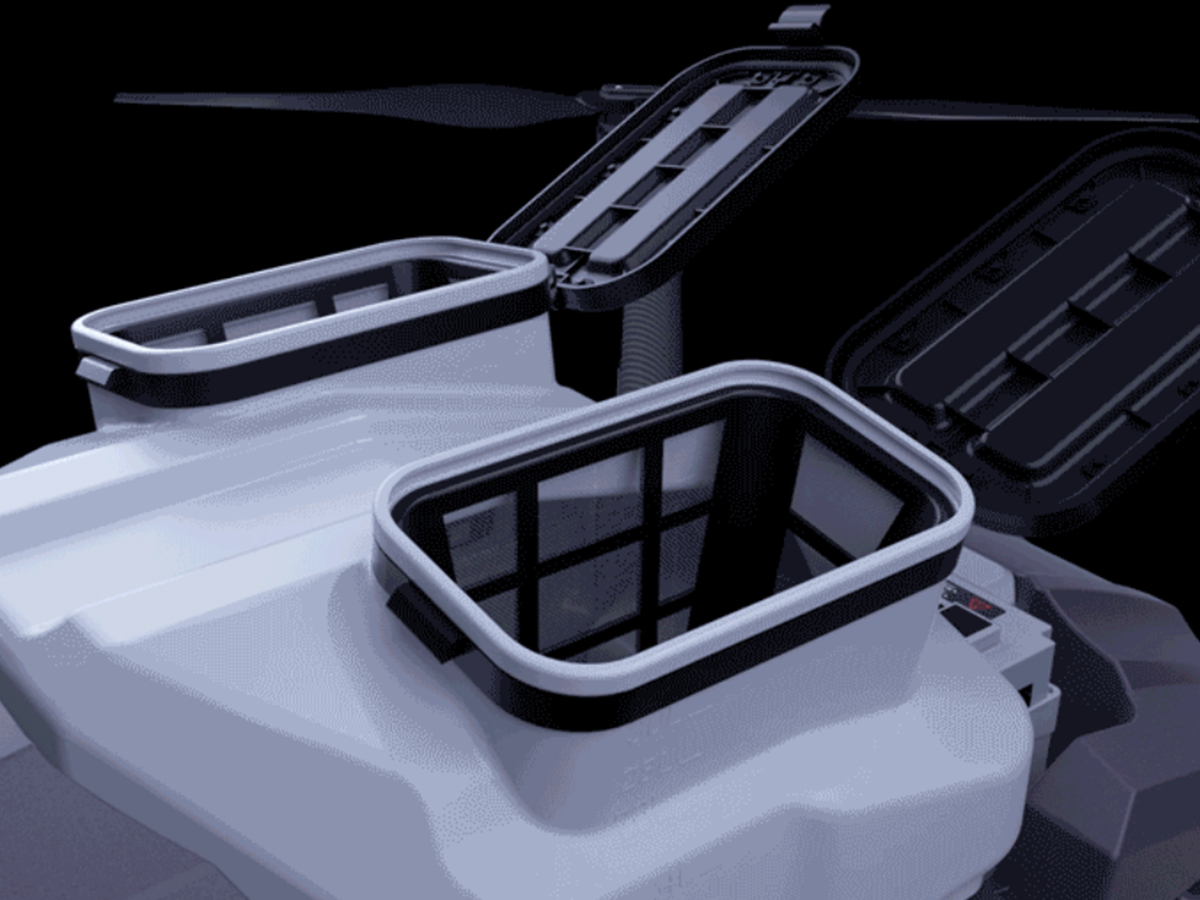

Double Clamshell Inlets Big dual inlets, easy pouring |

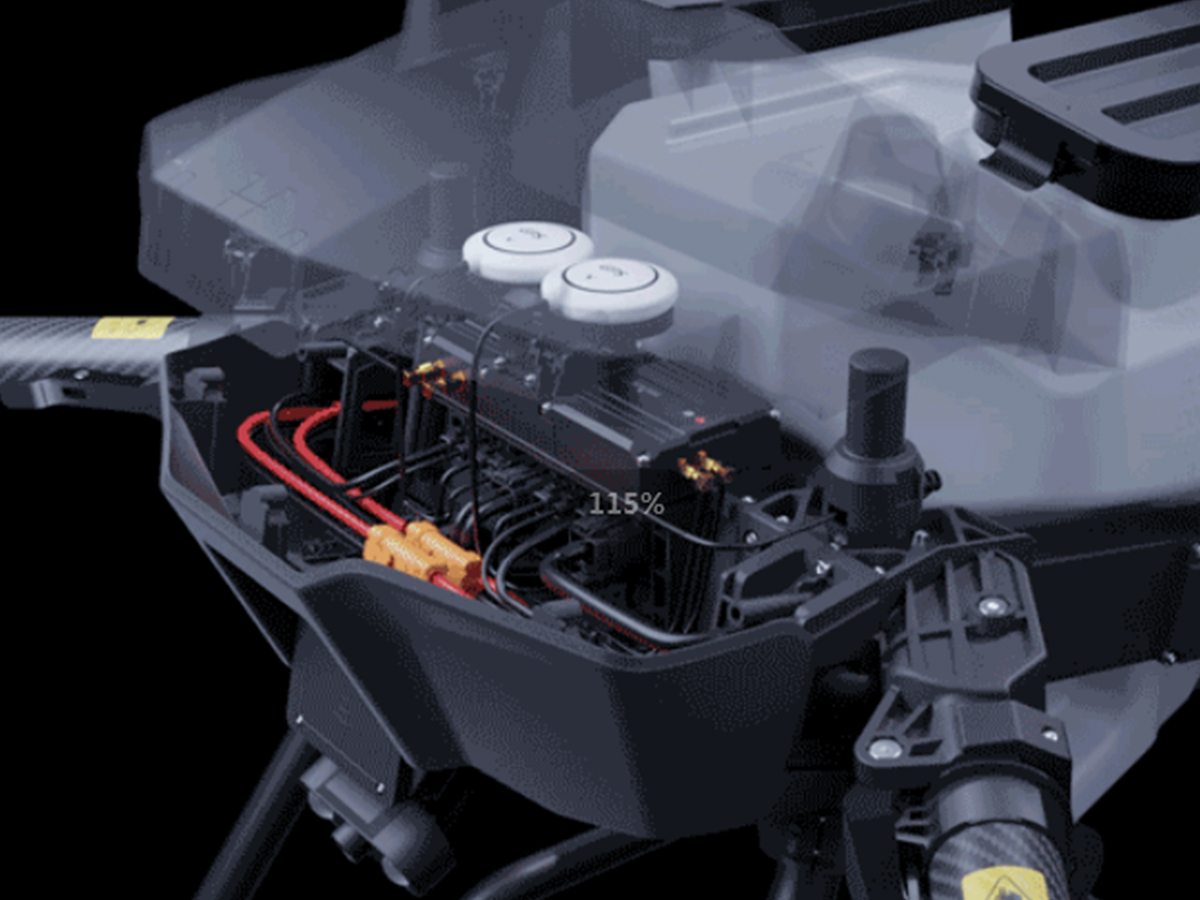

Tool-Free Housing Simple built-in buckle, quick disassembly |

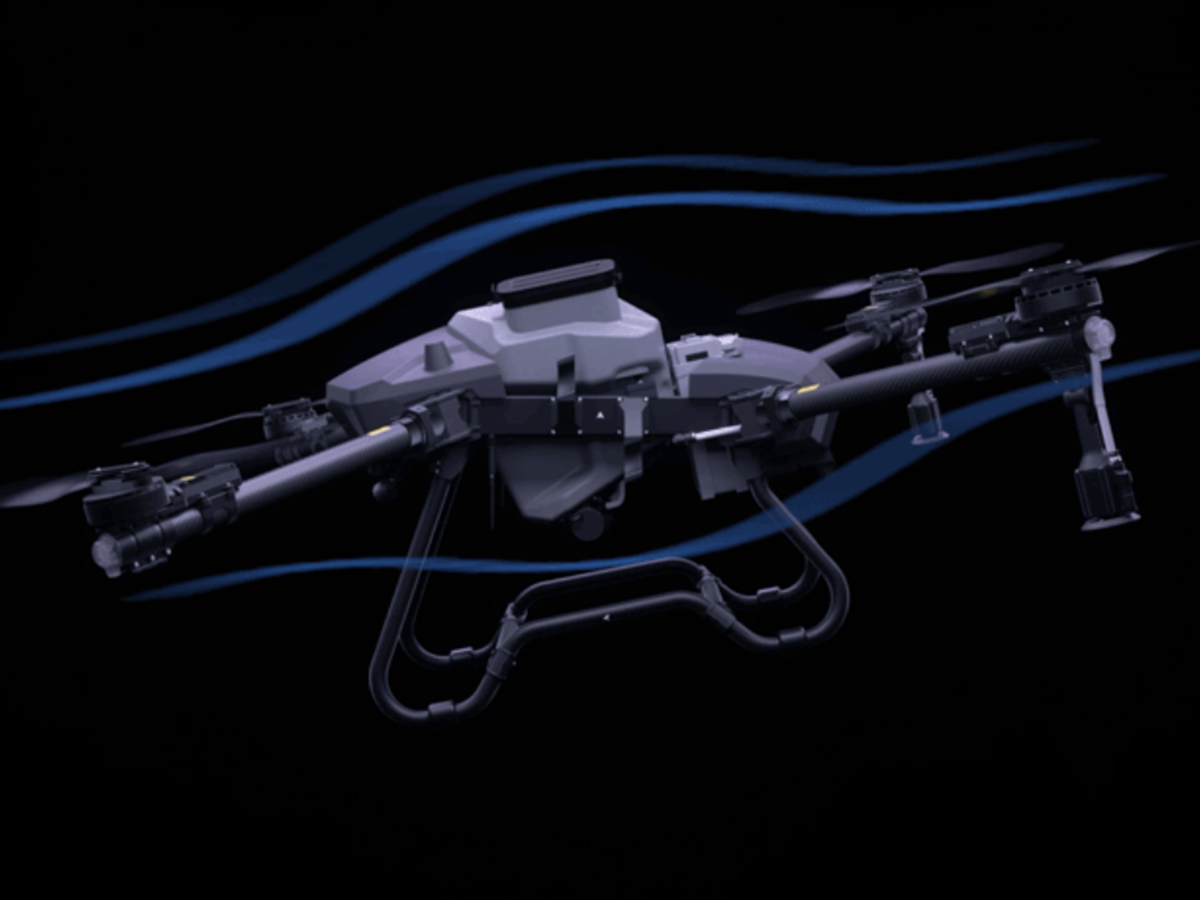

Front High Tail Low Effective reduction of wind resistance |
|
Fully Interconnection, Aptitude Upgrade |
||
 |
 |
 |
|

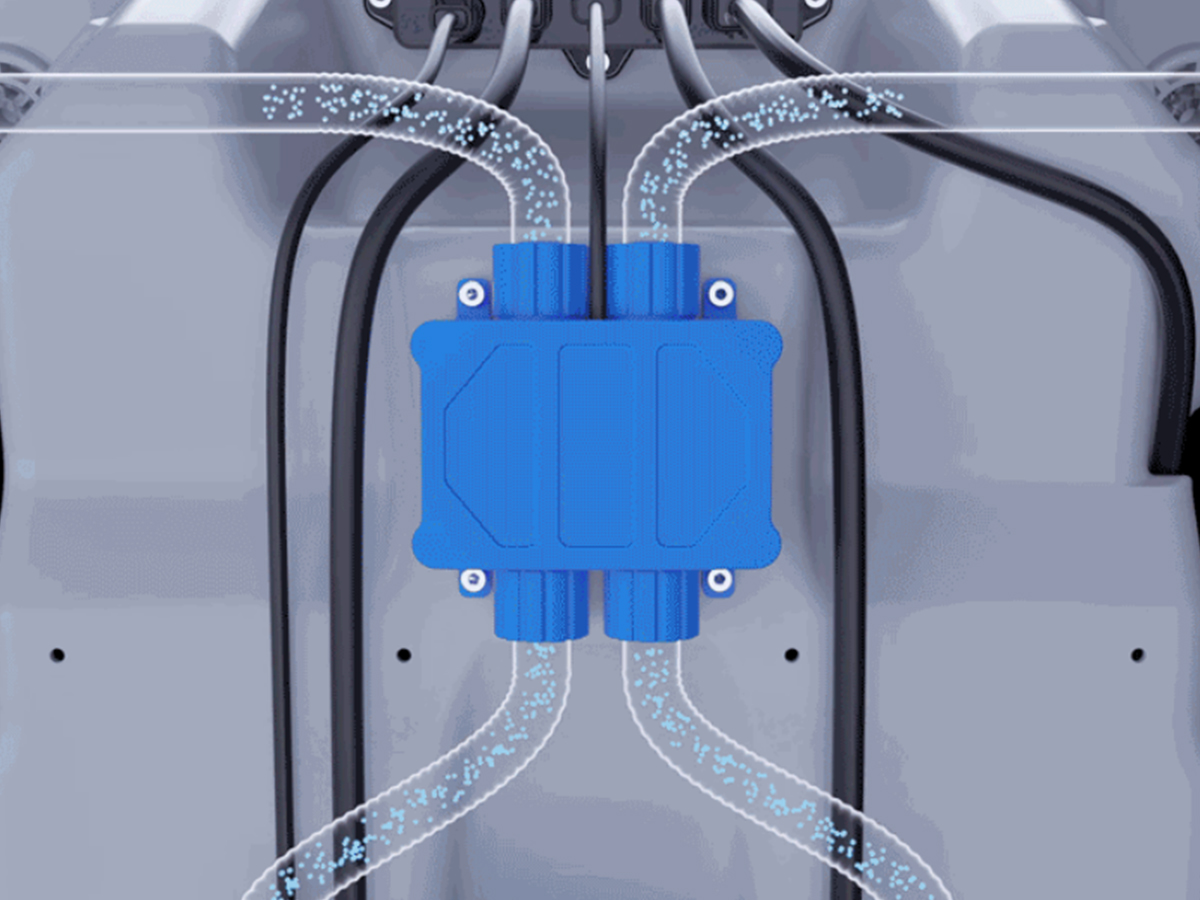

Ultrasonic Flowmeter Separating detection, stable and reliable |

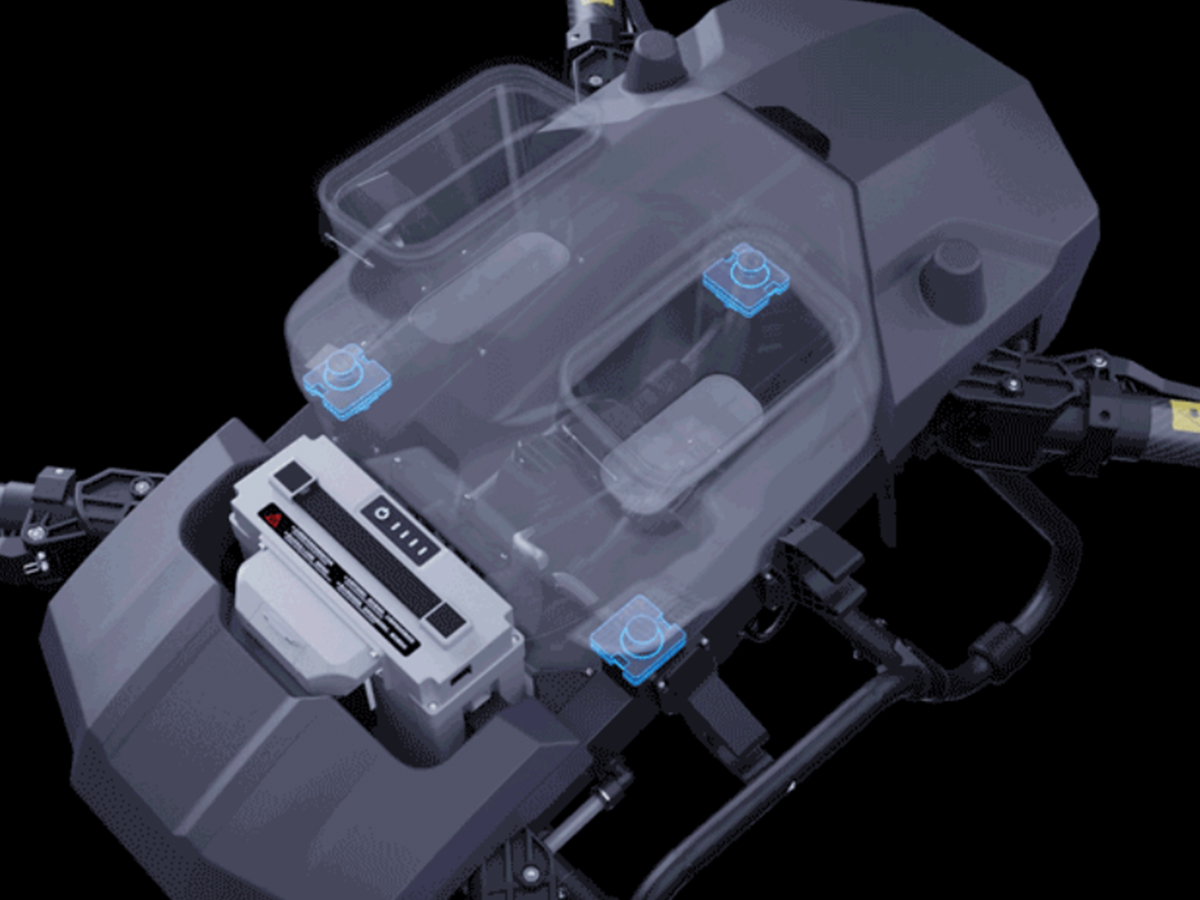

High Precision Weighing Modules Real-time detection to avoid overloading |

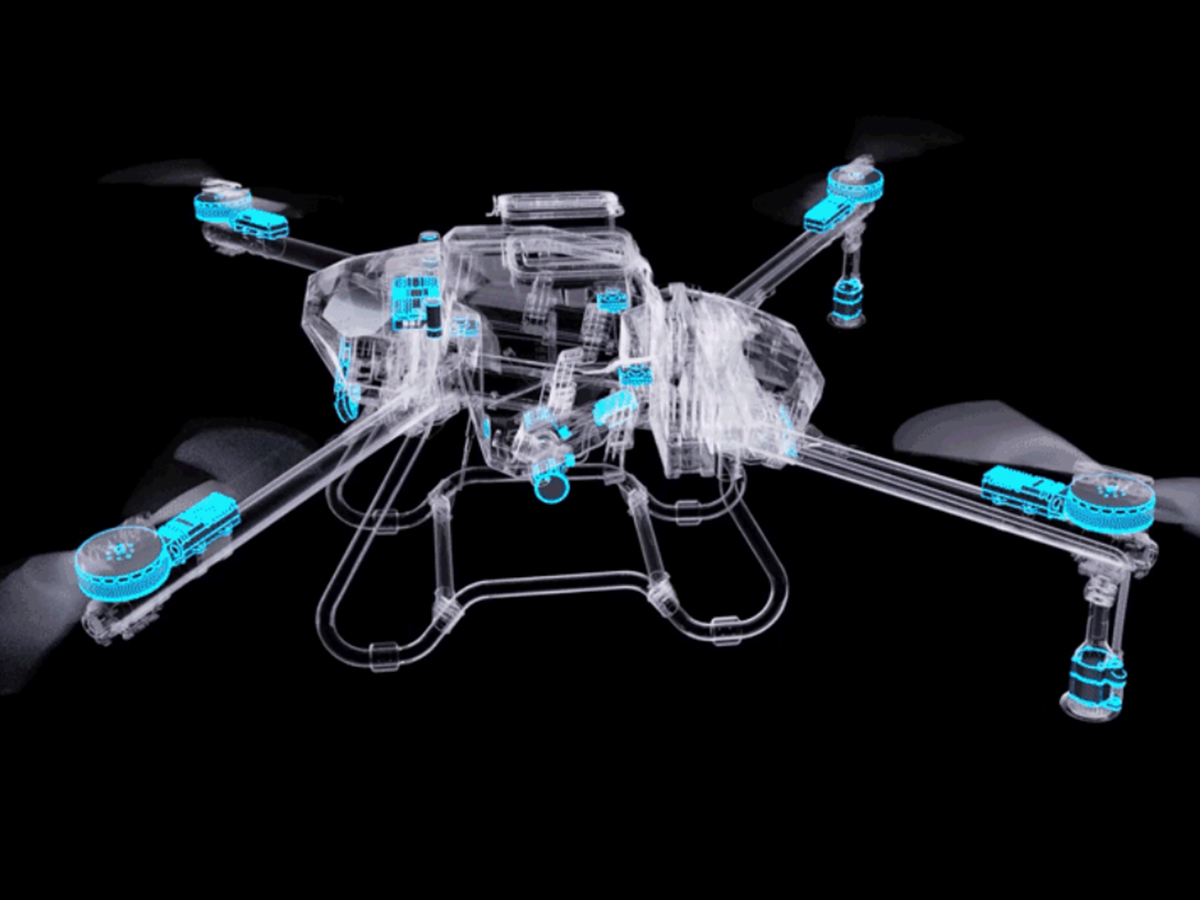

Intelligent Feedback Module Constantly status detection, early warning of faults |
 |
 |
 |
|

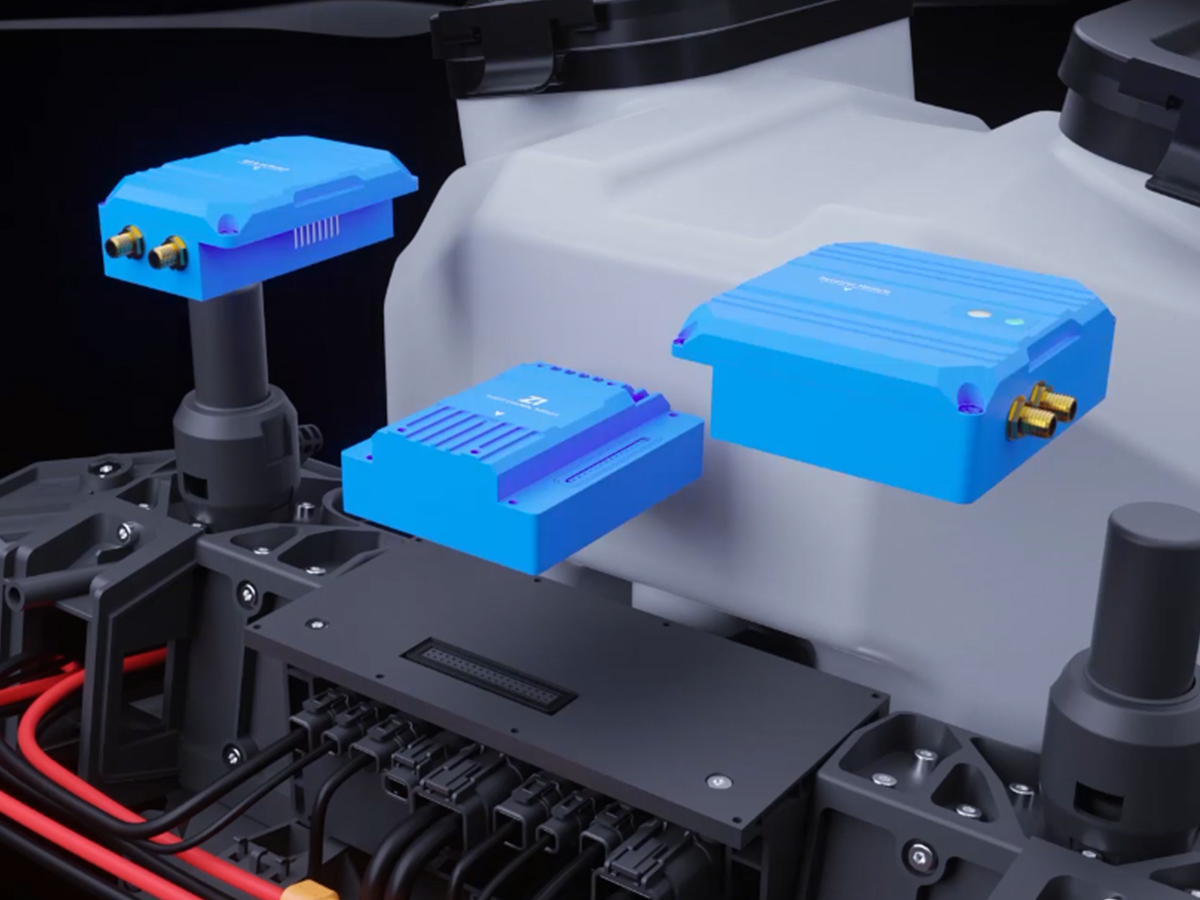

Integrated Flight Control Wiring-free and debugging-free, enabling fast installation |

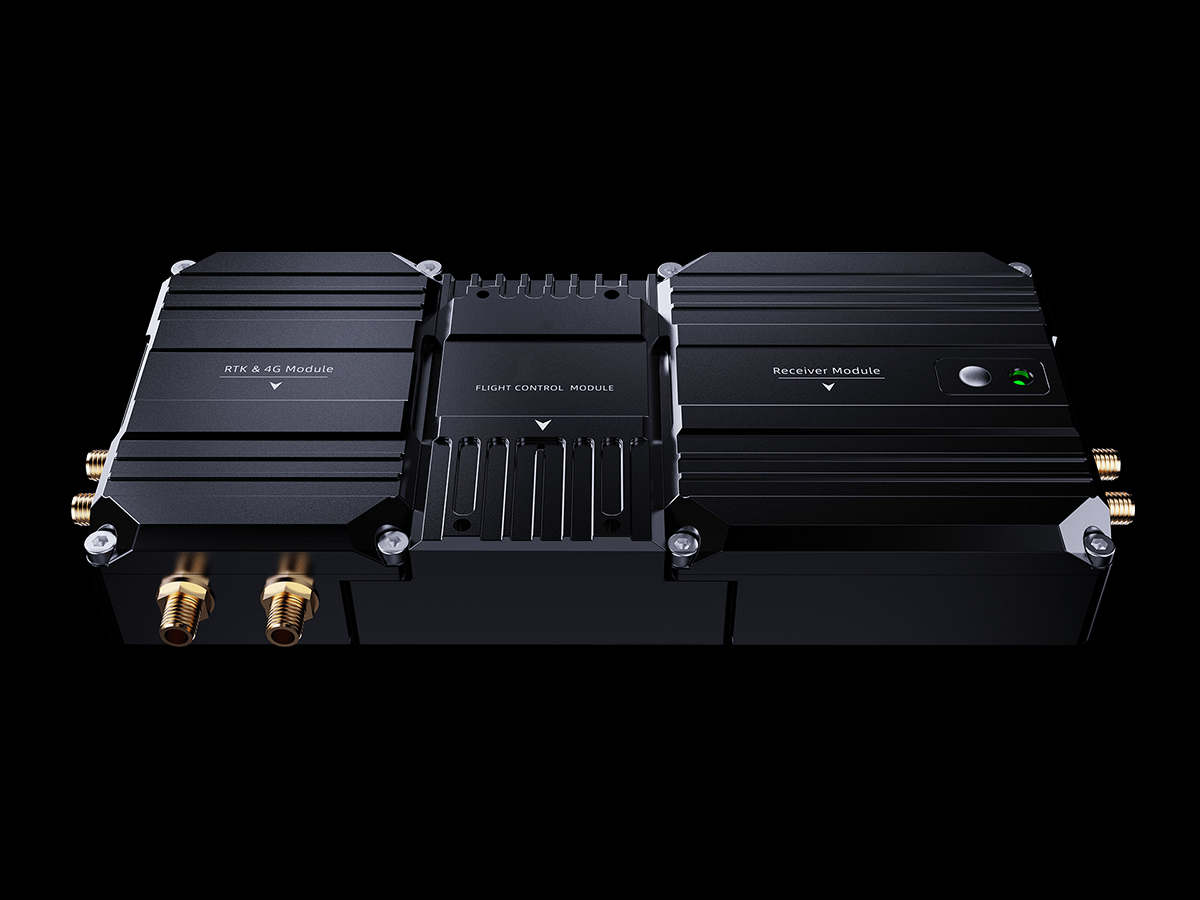

Grouping Modular Design Separate modules of flight control, RTK module and receiver module. Plug-in connection, flexible configuration |

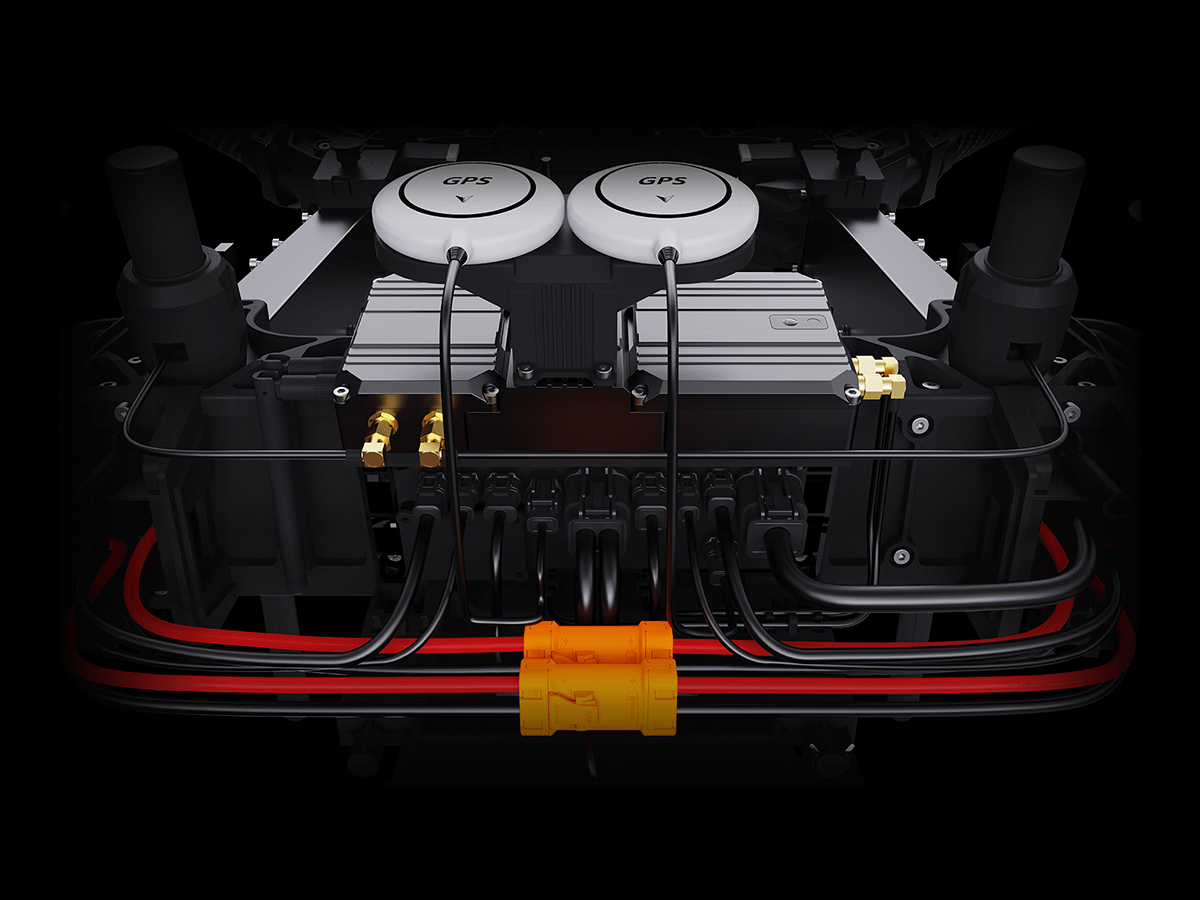

Optimize Arrangement, Upgrade Waterproofing Deeply optimized wire layout, orderliness and easy to repair, optimizing plug with waterproof terminal, more reliable performance |

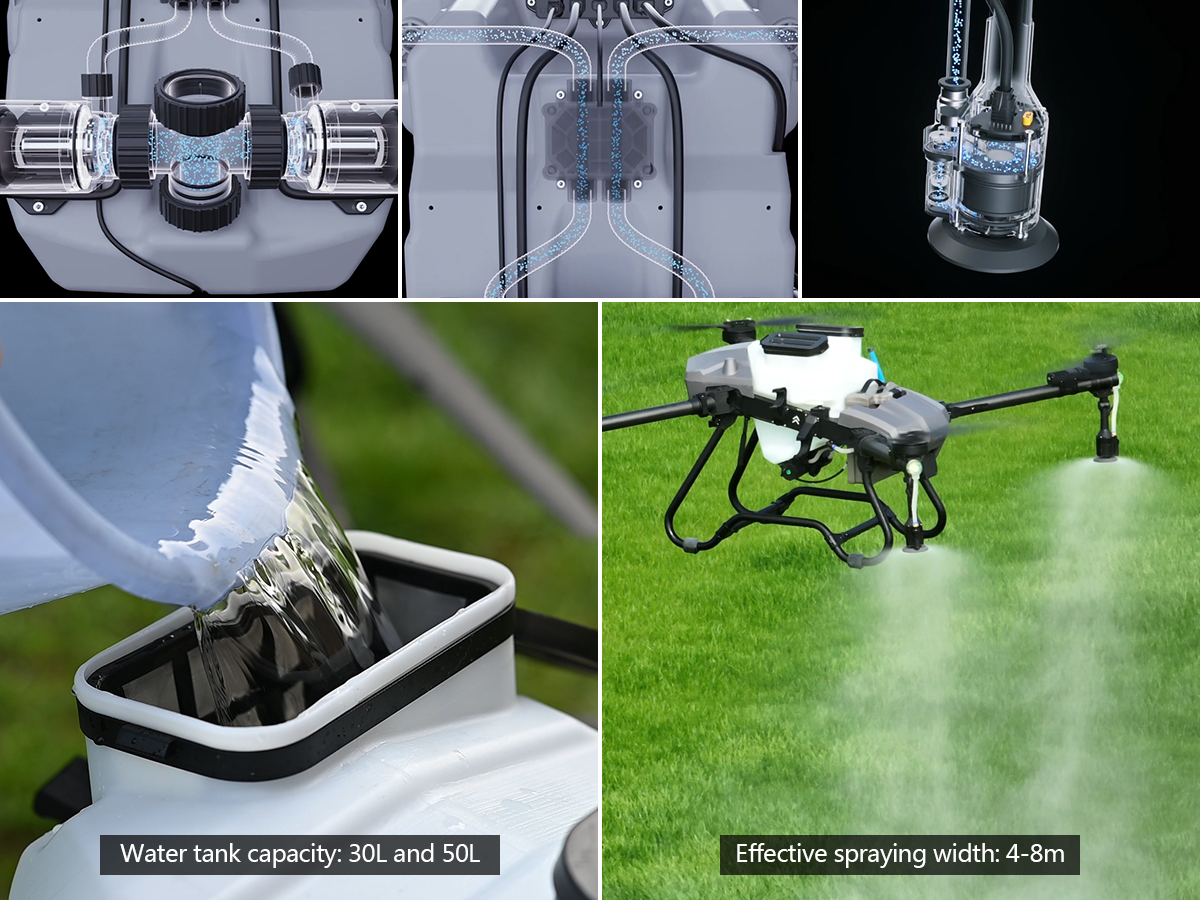

Efficient Spraying, Hearty Flow
-New spraying system, equipped with bilateral high-flow impeller pumps, abundant flow, efficient operation.
-Equipped with ultrasonic flow meter, the sensor and liquid are detected separately, which makes the performance more stable and the precision more accurate.
-Unique water-cooled centrifugal spray nozzle, effectively reduce the temperature of motor adjustment, increase service life.
-Large atomization radius, bringing a new spraying experience.
|
SPRAYING SYSTEM |
C30 |
C50 |
|
Spraying tank |
30L |
50L(recommend 45L) |
|
Water pump |
Volt:12-18S / Power:30W*2 / Max flow:8L/min*2 |
|
|
Nozzle |
Volt:12-18S / Power:500W*2 / Atomized particle size:50-500μm |
|
|
Spray width |
4-8m |
|

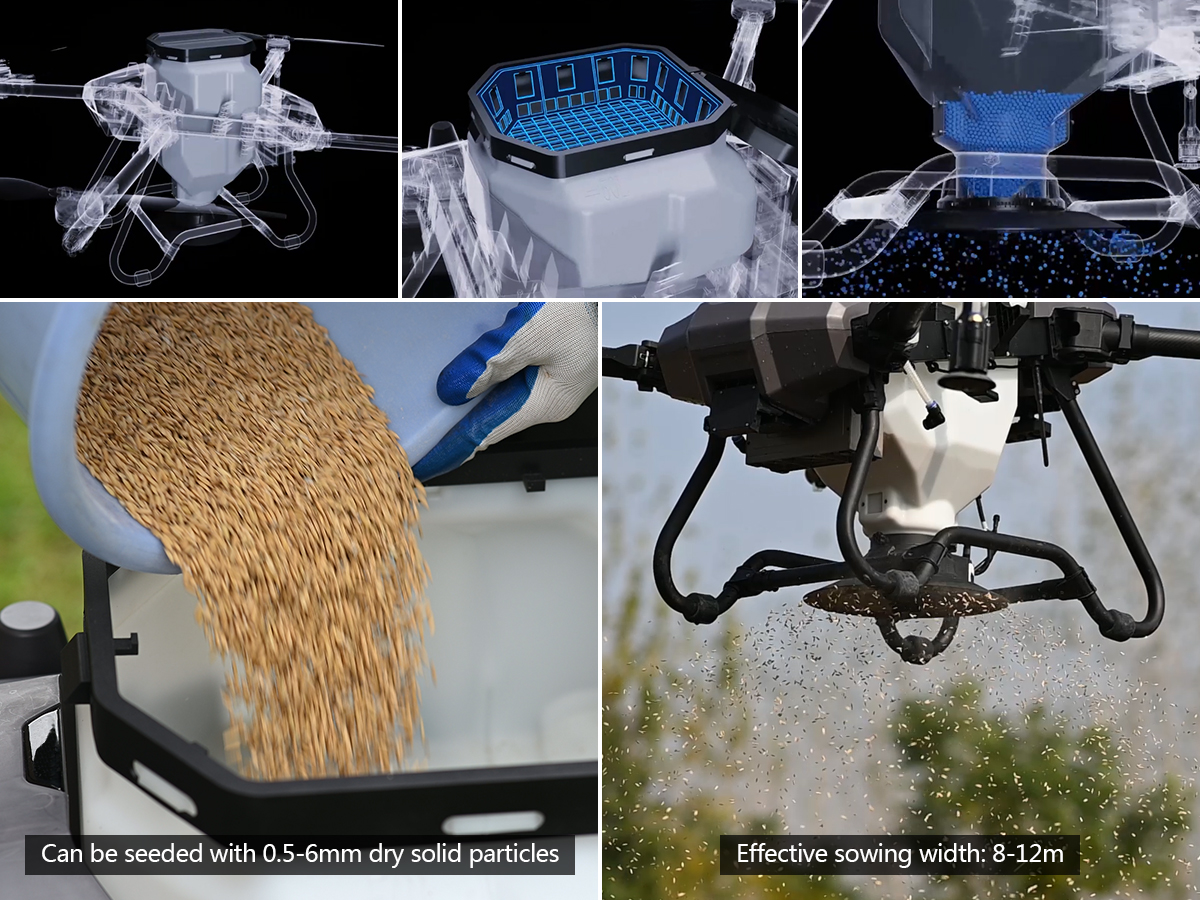

Precise Spreading, Smooth Sowing
-Integrated tank design, quickly change spraying and spreading in one step, convenient and fast.
-Super large inlets, greatly enhance the loading efficiency.
-Bow-shaped tripod design, effectively avoid the collision of broadcasting particles.
|
SPREADING SYSTEM |
C30 |
C50 |
|
Spreading tank |
50L |
70L |
|
Max load |
30kg |
50kg |
|
Applicable granule |
0.5-6mm dry solids |
|
|
Spread width |
8-12m |
|

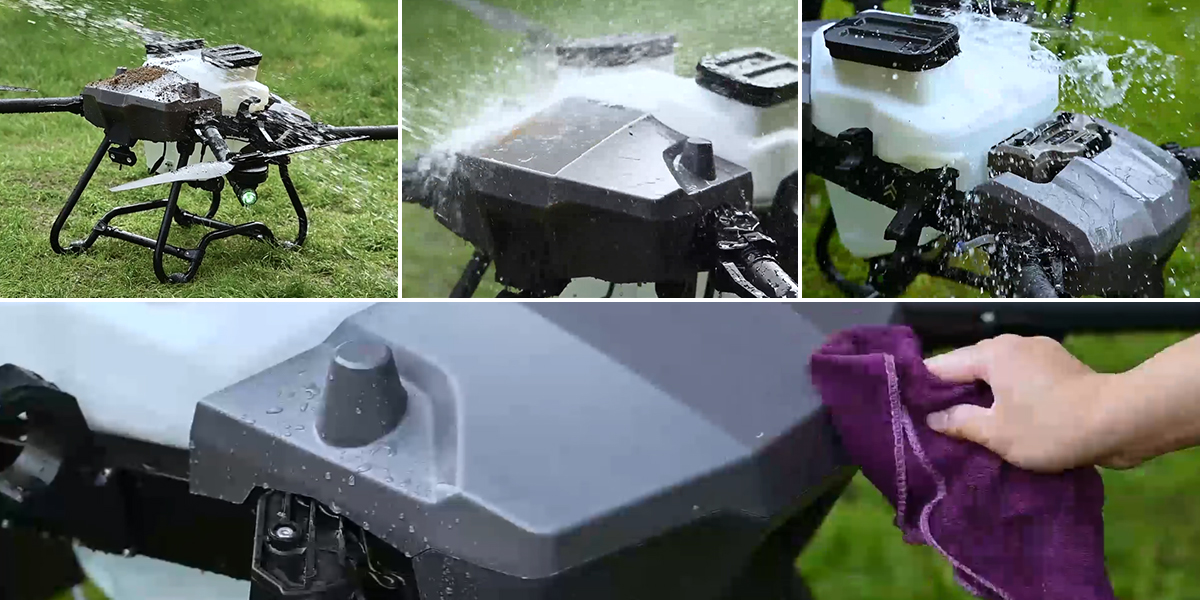

IP67, Integrally Waterproof
-The whole drone is upgraded waterproof from the inside to the outside, Motherboard integral potting, plug with waterproof terminal, sealed all core modules.
-The whole drone achieves immersion waterproof, easily cope with various harsh working environments.
Common Structure, Convenient Maintenance
30L/50L universal structure, more than 95% of the parts are common. Which makes it easy to prepare the spare parts and effectively reduce the maintenance costs. Simplify assembly process and improve production efficiency.
|

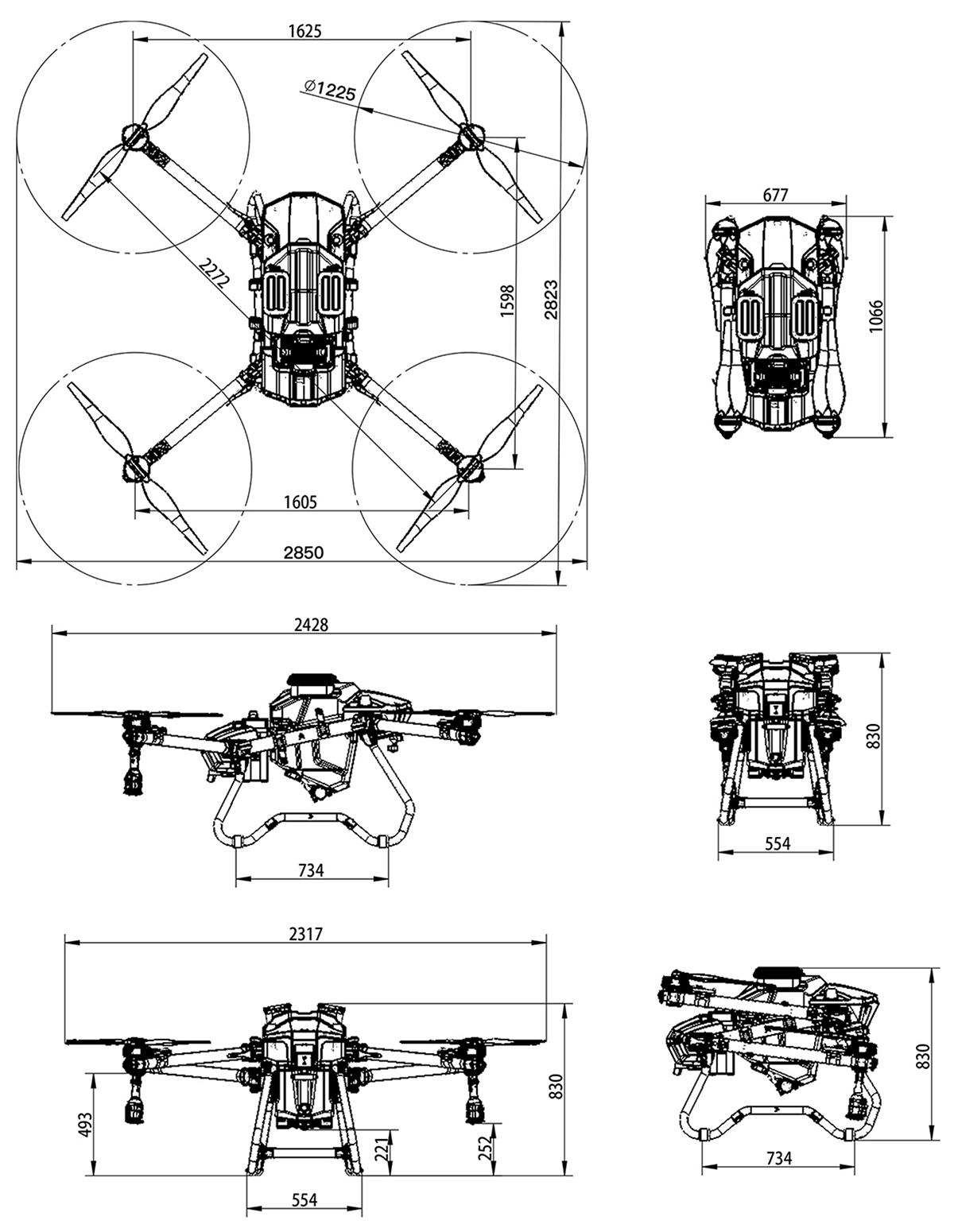

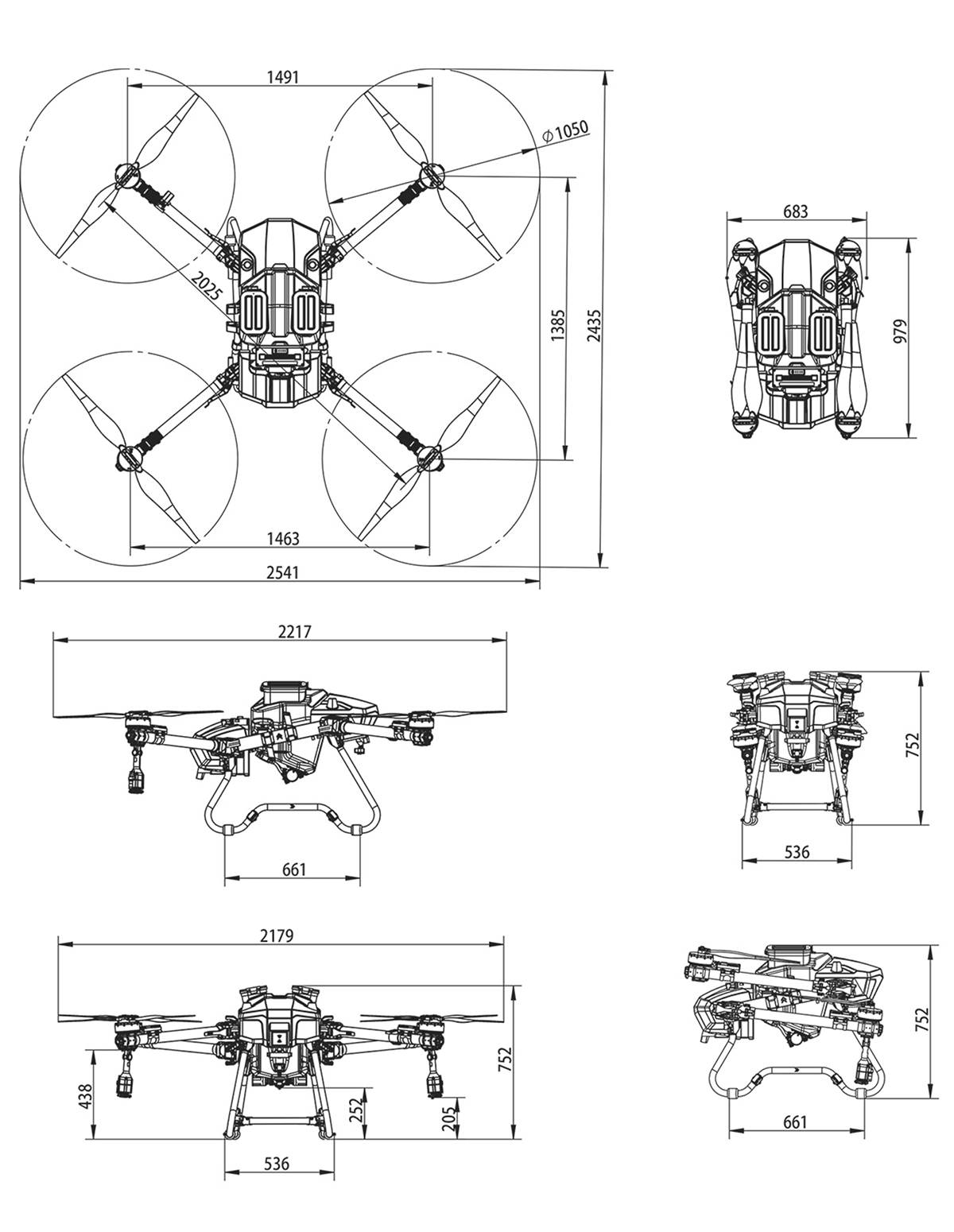

Product Dimension Drawing |
|
|
C30 |
C50 |
 |
 |
FAQ
1.What is the best price for your product?
We will quote based on the quantity of your order, the higher the quantity the higher the discount.
2.What is the minimum order quantity?
Our minimum order quantity is 1 unit, but of course there is no limit to the number of units we can purchase.
3.How long is the delivery time of the products?
According to the production order dispatch situation, generally 7-20 days.
4.What is your payment method?
Wire transfer, 50% deposit before production, 50% balance before delivery.
5.What is your warranty time? What is the warranty?
General UAV frame and software warranty of 1 year, the warranty of wearing parts for 3 months.
